Seat Assembly Replacement

WARNING: This page is about a different car, the 2007 Kia Rio5, 2007 Kia Rio, 2006 Kia Rio5, and 2006 Kia Rio. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat assembly mounting cover.
  2. After loosening the seat assembly mounting bolt and nut, remove the seat assembly (A).

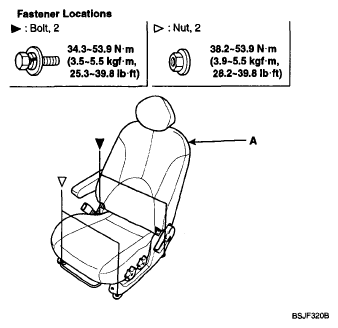

    Fig 1: Identifying Seat Assembly And Mounting Bolt
    G04863429Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the connector (B), and remove the seat assembly.

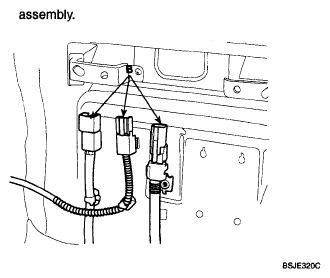

    Fig 2: Identifying Seat Assembly Connector
    G04863430Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse of removal.
    CAUTION:
    • Set the Into the most rearward position. Check then each slide Is locked, and then Tighten the front mounting bolt temporarily.
    • Set the seat Into most forward position. Check that each slide Is locked, and then Tighten the rear mounting bolt completely.
    • Set the seat Into the most rearward position. Check the front mounting bolt completely.
    • Check that the seat operates to and fro smoothy and the locking portion locks properly.
