Trouble Shooting

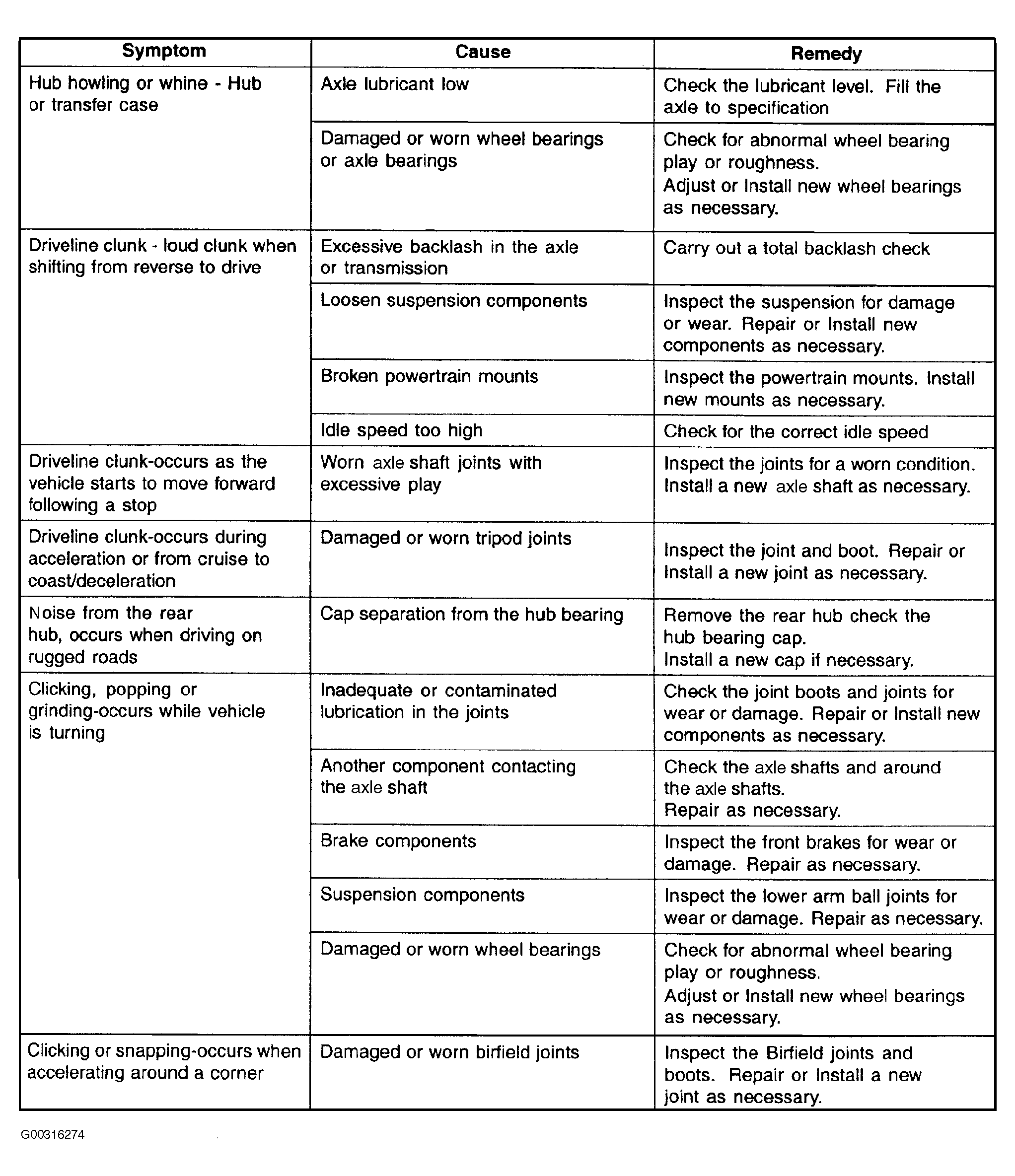

Fig 1: Axle Shaft Trouble Shooting Diagnosis (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

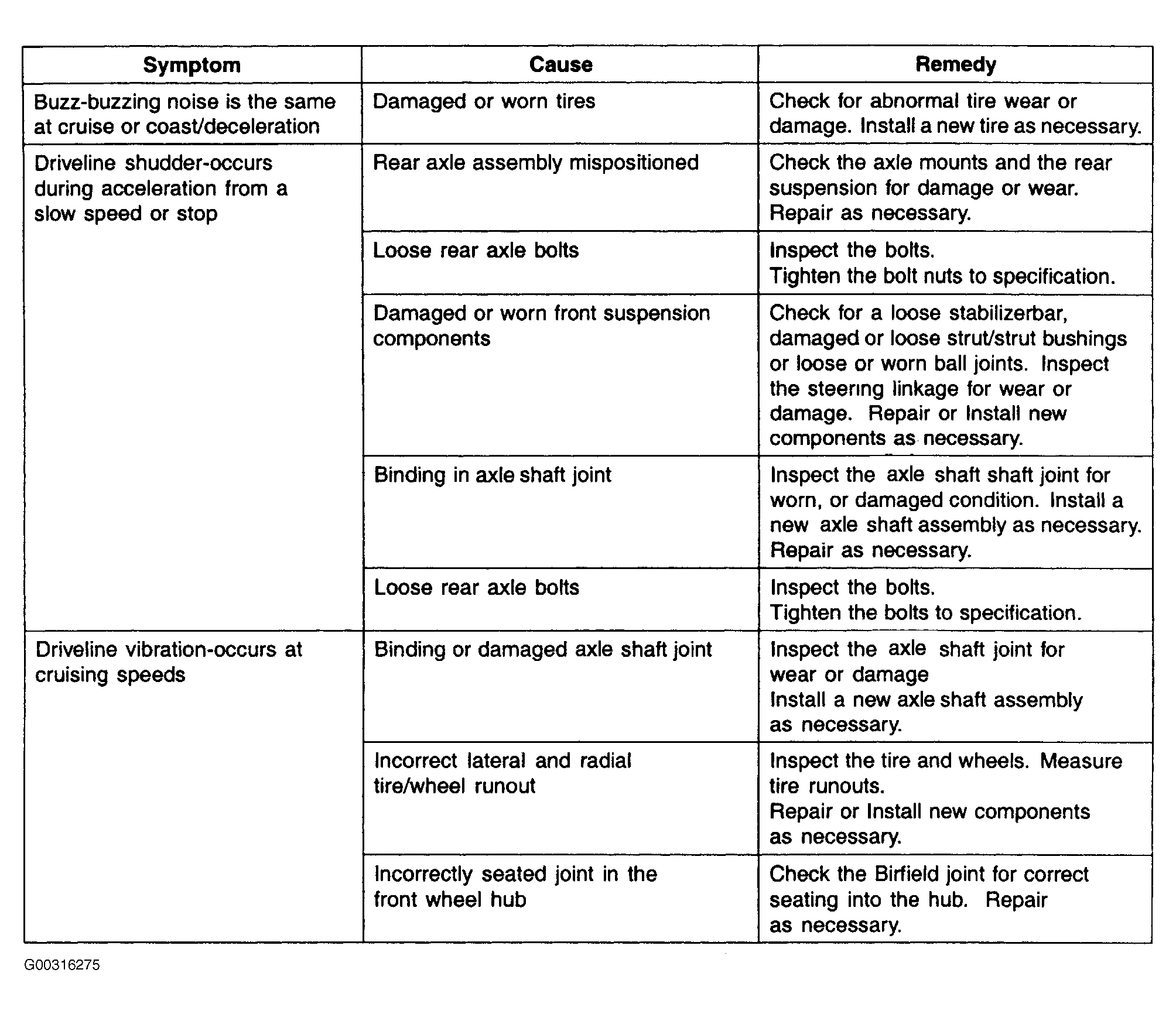

Fig 2: Axle Shaft Trouble Shooting Diagnosis (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
