LEMON Manuals
: Even more car manuals for everyone
Home
>>
Kia
>>
2007
>>
Spectra5 2.0 2, Automatic
>>
Repair and Diagnosis (Single Page)
>>
Drivelines & Axles
>>
Wheel Hubs
>>
Rear
>>
General
>>
Service Specifications
>>
Notes
Service Specifications: Notes

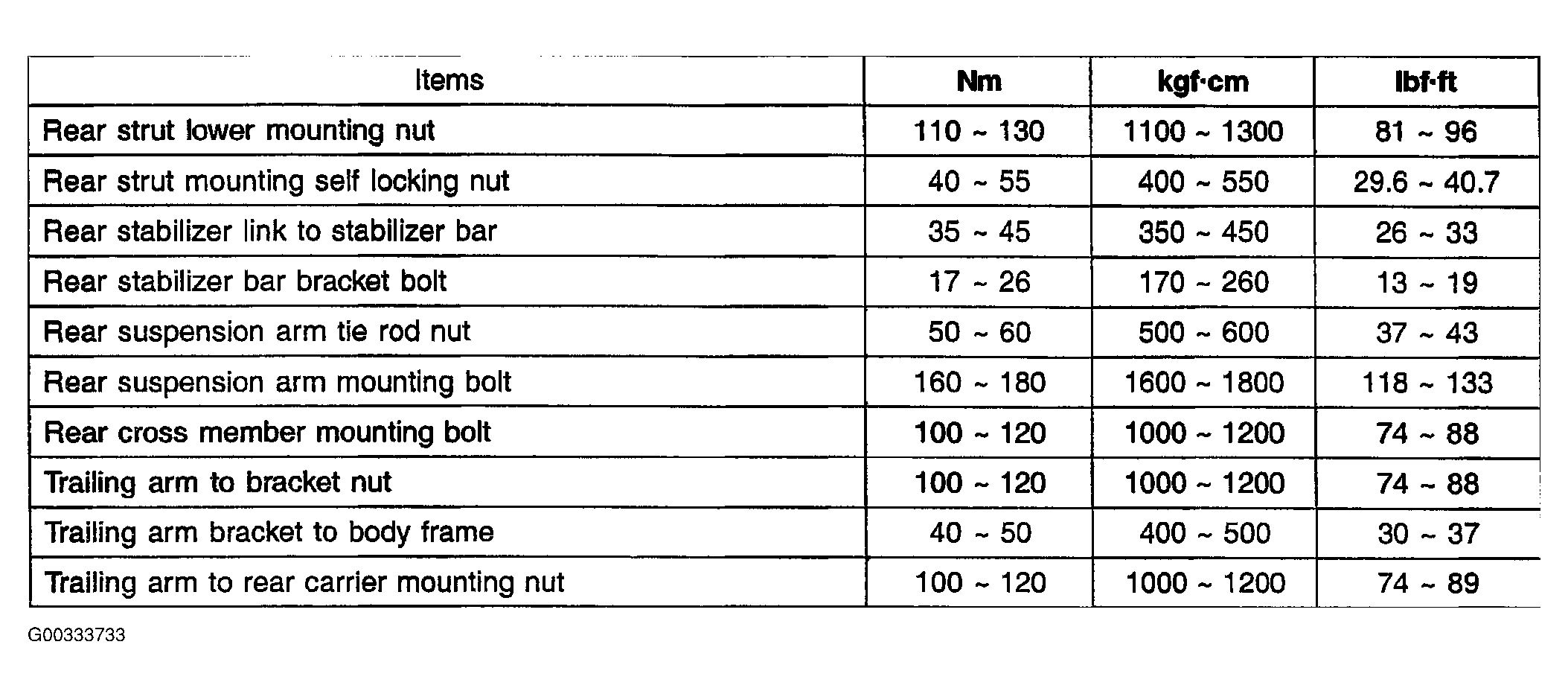

Fig 1: Tightening Torque (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Tightening Torque (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
