Clutch Release Cylinder: Installation

  1. Coat the clevis pin with specified grease. Align the hose at the end of the release cylinder push rod with that of the clutch release fork shaft, and insert the clevis pin into the holes.

    Specified grease: CASMOLY L9508

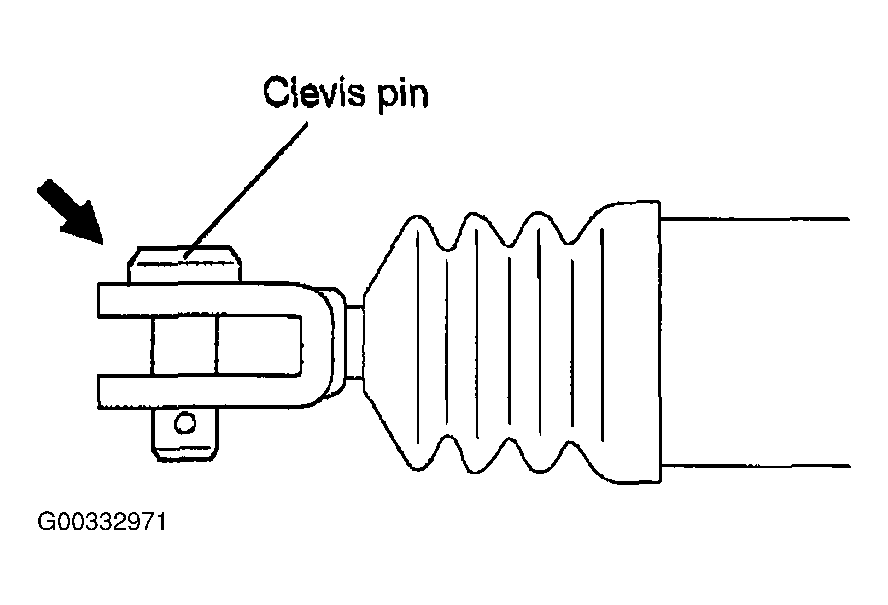

    Fig 1: Installing Clevis Pin
    G00332971Courtesy of KIA MOTORS AMERICA, INC.
  2. Install the clutch release cylinder and the clutch tube.
