Ignition Lock Switch Inspection

Remove the ignition lock switch and check for continuity between the terminals. If the continuity is not as specified, replace the switch.

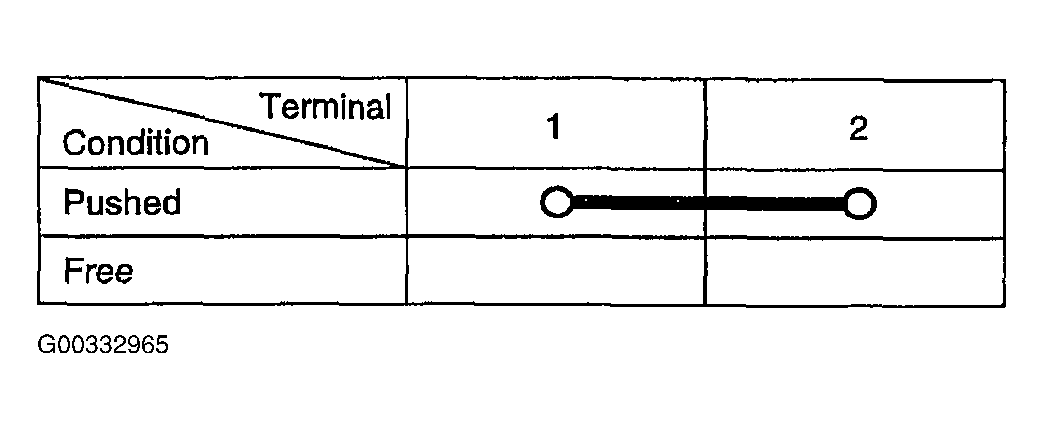

Fig 1: Ignition Lock Switch Continuity

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Ignition Lock Switch Meter Connections

Courtesy of KIA MOTORS AMERICA, INC.
