Clutch Master Cylinder: Reassembly

  1. Apply the specified fluid to the inner surface of the master cylinder body (A) and to the entire periphery of the piston assembly (B).

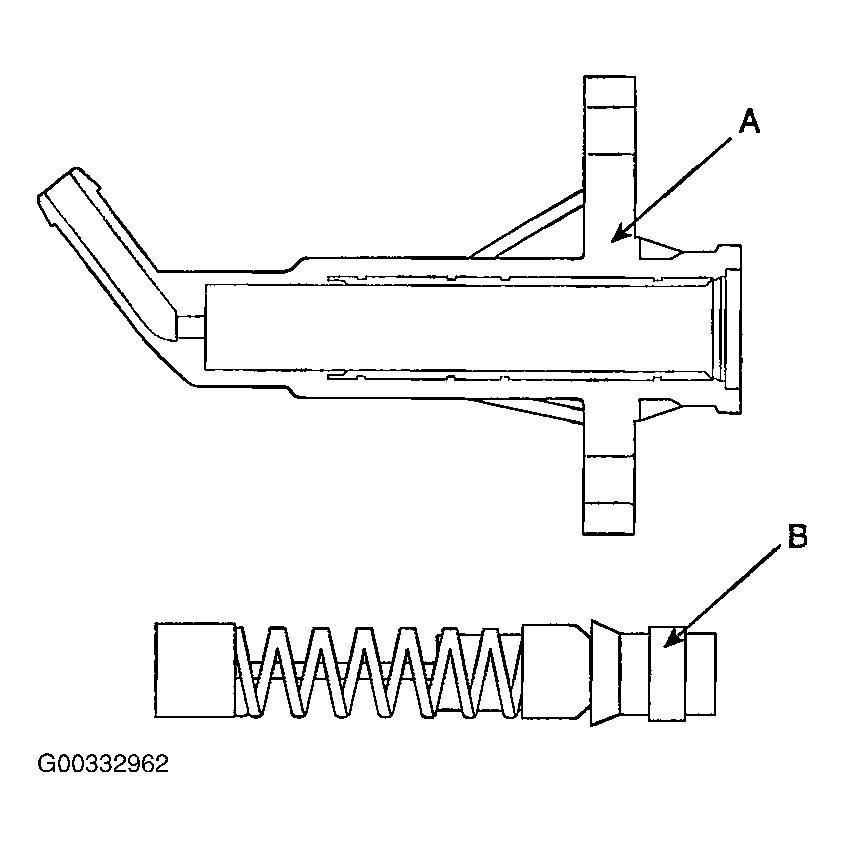

    Fig 1: Identifying Lubrication Points
    G00332962Courtesy of KIA MOTORS AMERICA, INC.

    Specified fluid: Brake fluid DOT 3 or DOT 4

  2. Install the piston assembly.
  3. Install the piston snap ring.
  4. Install the push rod assembly.
