Clutch Master Cylinder: Disassembly

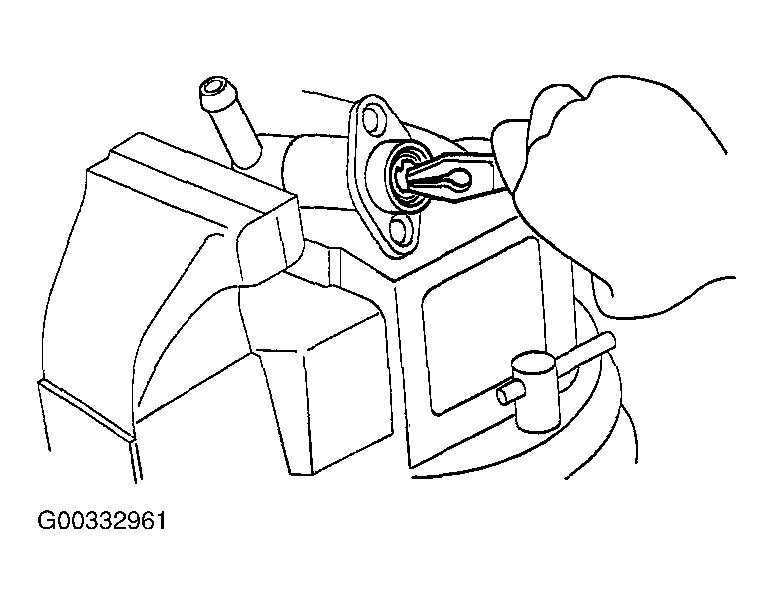

  1. Remove the piston stop ring.
    Fig 1: Removing Piston Stop Ring
    G00332961Courtesy of KIA MOTORS AMERICA, INC.
  2. Pull out the push rod and piston assembly.
  3. Remove the reserve tank band, reserve tank cap, and reserve tank.
    NOTE:
    1. Use care not to damage the master cylinder body and piston assembly.
    2. Do not disassemble the piston assembly.
