Section 7 (Windshield Wiper-Washer): Troubleshooting

WARNING: This page is about a different car, the 2007 Kia Rio5, 2007 Kia Rio, 2006 Kia Rio5, and 2006 Kia Rio. However, it is still accessible from the selected car via links, so may be relevant.

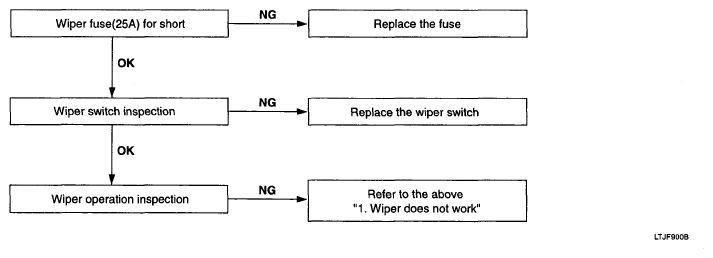

Wiper low and wiper high do not work.

Fig 1: Troubleshooting Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.

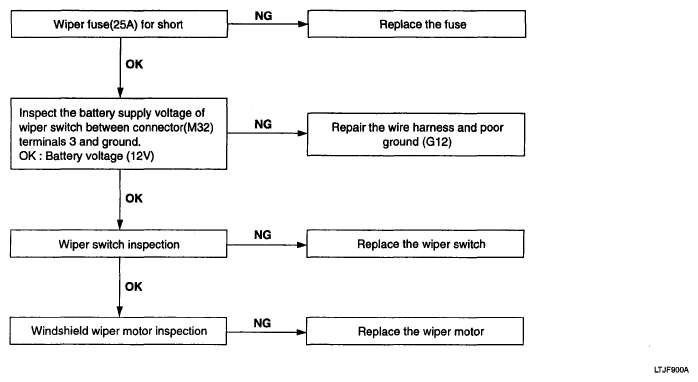

When washer switch is on, wiper does not work.

Fig 2: Troubleshooting Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
