Front Washer Motor: Replacement

WARNING: This page is about a different car, the 2007 Kia Rio5, 2007 Kia Rio, 2006 Kia Rio5, and 2006 Kia Rio. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper cover. (Refer to BUMPERS )
  3. Remove the washer hose and the washer motor connector (A).
  4. Remove the washer reservoir after removing 3 bolts.

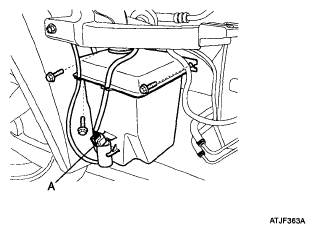

    Fig 1: Identifying Washer Motor Connector
    G04863713Courtesy of KIA MOTORS AMERICA, INC.
  5. Installation is the reverse of removal.
