Trunk Lid: Replacement: Notes

WARNING: This page is about a different car, the 2007 Kia Rio5, 2007 Kia Rio, 2006 Kia Rio5, and 2006 Kia Rio. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • When removing and installing the trunk lid, an assistant is necessary.
  • Wear gloves to protect hands from injury.
  1. Disconnect the key holder connector (A) license plate lamp connector (B) then remove the wiring harness from trunk lid.
  2. Loosen the trunk lid mounting bolt, then remove the trunk lid (C).
  3. Installation is the reverse of removal.

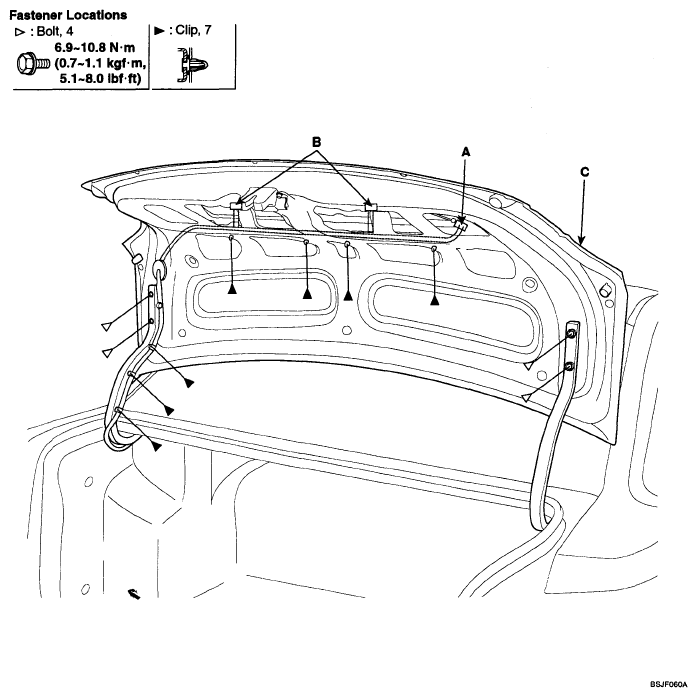

    Fig 1: Ley Holder Connector, License Plate Lamp Connector And Trunk Lid With Torque Specifications
    G04863317Courtesy of KIA MOTORS AMERICA, INC.
