Key Holder Replacement

WARNING: This page is about a different car, the 2007 Kia Rio5, 2007 Kia Rio, 2006 Kia Rio5, and 2006 Kia Rio. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosening the mounting bolts, disconnect the connector (A), rod (C).
  2. Remove the key holder (B).

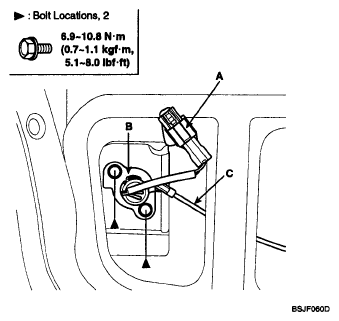

    Fig 1: Ley Holder, Connector And Rod With Torque Specifications
    G04863323Courtesy of KIA MOTORS AMERICA, INC.
  3. Installation is the reverse of removal.
