Trunk Lid: Adjustment: Notes

WARNING: This page is about a different car, the 2007 Kia Rio5, 2007 Kia Rio, 2006 Kia Rio5, and 2006 Kia Rio. However, it is still accessible from the selected car via links, so may be relevant.
  1. After loosening the trunk lid hinge (A) mounting bolt, adjust the hood by moving it up or down, or right or left.
  2. Adjust the trunk lid height by turning the trunk lid over-slam bumpers (B).
  3. After loosening the trunk lid latch (C) mounting bolts, adjust the trunk lid latch by moving it up or down, or right or left.

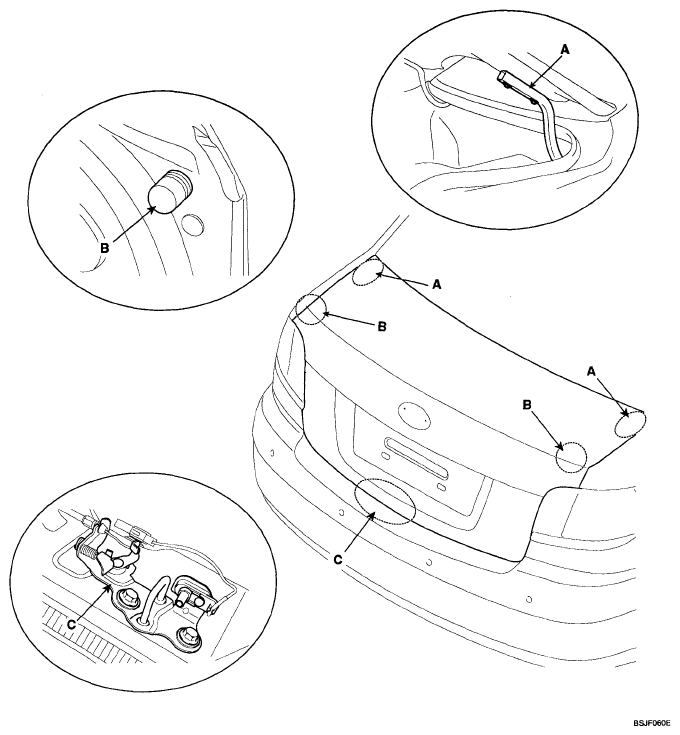

    Fig 1: Identifying Trunk Lid Hinges, Over-Slam Bumpers And Latch
    G04863324Courtesy of KIA MOTORS AMERICA, INC.
