Guide Assembly Replacement

WARNING: This page is about a different car, the 2007 Kia Rio5, 2007 Kia Rio, 2006 Kia Rio5, and 2006 Kia Rio. However, it is still accessible from the selected car via links, so may be relevant.

Remove the sunroof assembly (See SUNROOF ASSEMBLY REPLACEMENT ).

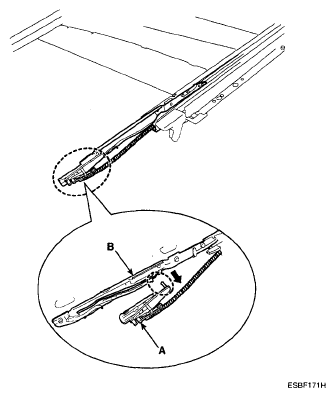

Remove a guide assembly (A) after lowering a guide thoroughly by pushing a slide to rear.

Fig 1: Identifying Guide Assembly
Courtesy of KIA MOTORS AMERICA, INC.

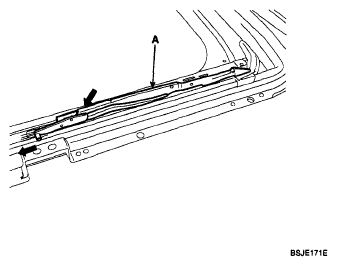

Remove the guide (A) and slide (B).

Fig 2: Identifying Guide And Slide
Courtesy of KIA MOTORS AMERICA, INC.
installation is the reverse of removal.
NOTE:

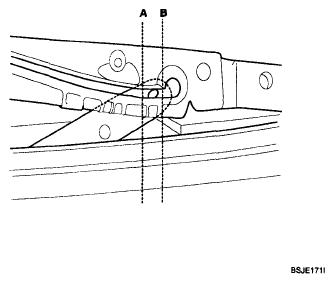

- Make sure to align the slide with the center of "A" and" B"
- Make sure to initialize the motor.

  Fig 3: Aligning Slide With Center Of "A" And "B"
  Courtesy of KIA MOTORS AMERICA, INC.
