Outside Rear View Mirror Replacement

WARNING: This page is about a different car, the 2007 Kia Rio5, 2007 Kia Rio, 2006 Kia Rio5, and 2006 Kia Rio. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Remove the quadrant inner cover (A), then disconnect the connector (B).

Fig 1: Identifying Quadrant Inner Cover And Connector
Courtesy of KIA MOTORS AMERICA, INC.
After disconnecting the connector (A), remove the outside rear view mirror (B).

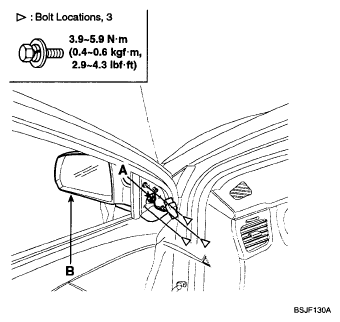

Fig 2: Outside Rear View Mirror And Connector With Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
