Power Window Motor Replacement

WARNING: This page is about a different car, the 2007 Kia Rio5, 2007 Kia Rio, 2006 Kia Rio5, and 2006 Kia Rio. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim (See REPLACEMENT  ).
  2. Remove the door regulator (See SPEAKER REPLACEMENT  ).
  3. Remove the window motor (A).

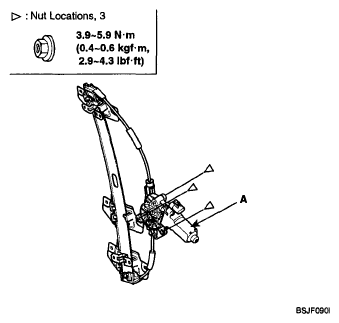

    Fig 1: Window Motor With Torque Specifications
    G04863340Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse of removal.
    NOTE:
    • Roll the glass up down to see if it move freely without binding.
