Front Door: Components

WARNING: This page is about a different car, the 2007 Kia Rio5, 2007 Kia Rio, 2006 Kia Rio5, and 2006 Kia Rio. However, it is still accessible from the selected car via links, so may be relevant.

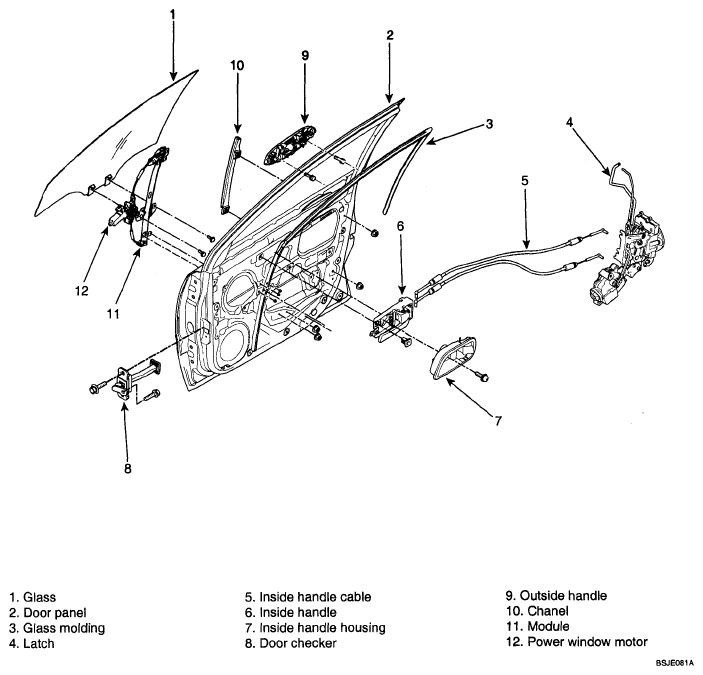

Fig 1: Identifying Front Door Components (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

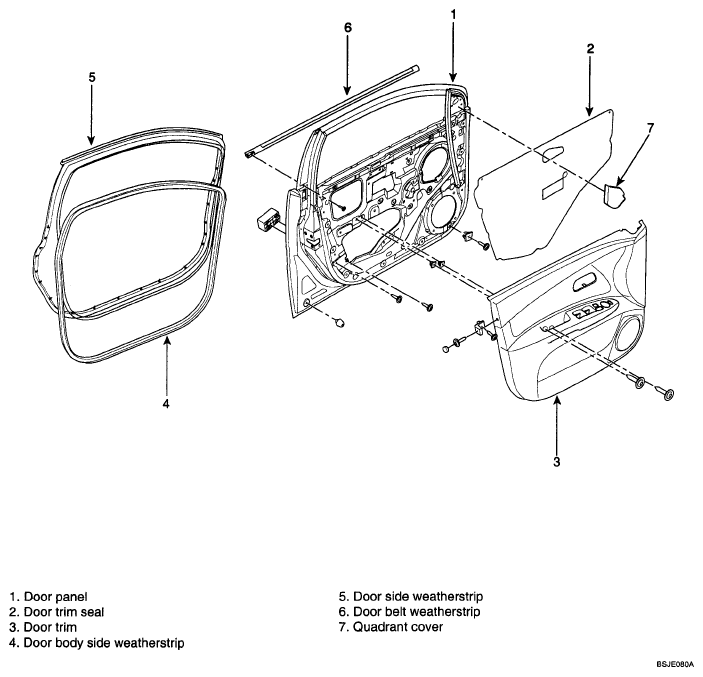

Fig 2: Identifying Front Door Components (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
