Section 4 (Exterior): Fender: Replacement

WARNING: This page is about a different car, the 2007 Kia Rio5, 2007 Kia Rio, 2006 Kia Rio5, and 2006 Kia Rio. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Put on gloves to protect your hands.
  • Take care not to scratch the body surface.
  • Put on gloves to protect your hands.
  • Take care not to scratch the body surface.
  1. Remove the wheel guard and mud guard (See BODY SIDE MOLDINGS  ).
  2. Remove the headlamp assembly.
  3. Remove the quadrant inner cover (A).
  4. After loose the mounting bolts, remove the fender (B).
  5. Installation is the reverse of removal.

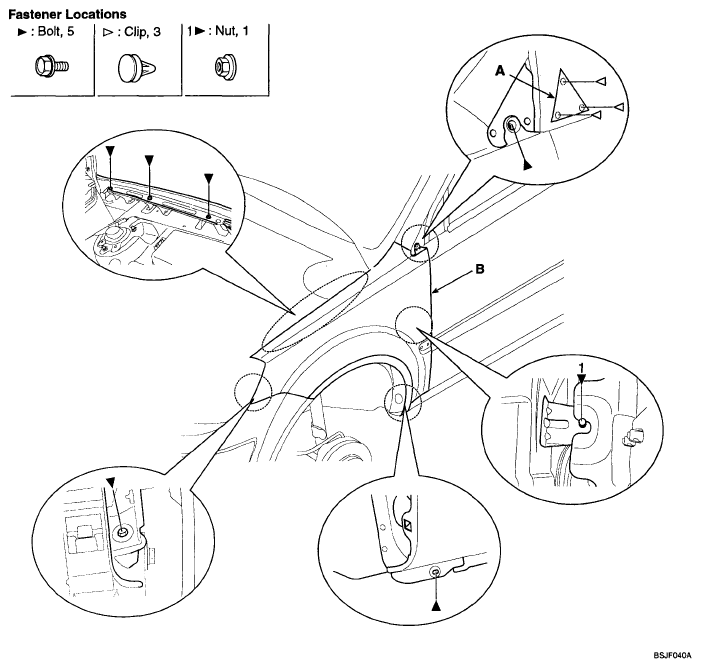

    Fig 1: Identifying Fasteners Location
    G04863307Courtesy of KIA MOTORS AMERICA, INC.
