Disassembly & Reassembly
- Disconnect the "M" terminal (A) on the magnet switch assembly. See Fig 1.

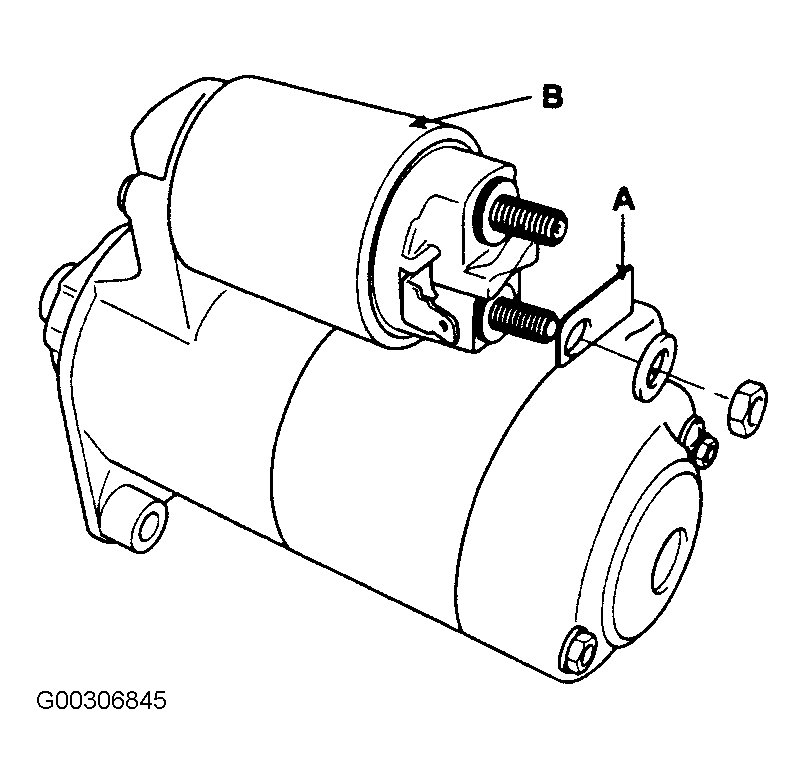

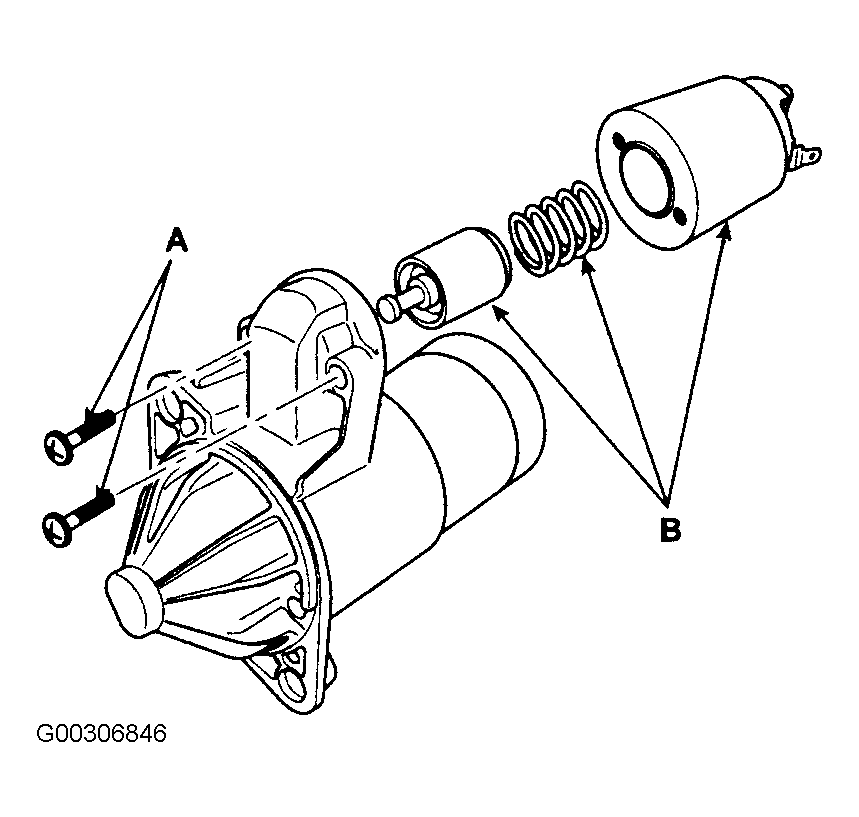

- After loosening the 2 screws (A), detach the magnet switch assembly (B). See Fig 2.

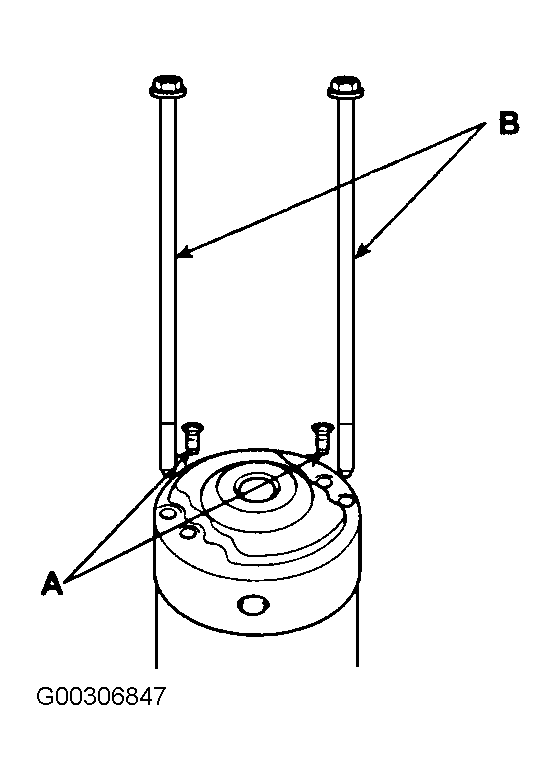

- Loosen the brush holder mounting screw (A) and through bolts (B). See Fig 3.

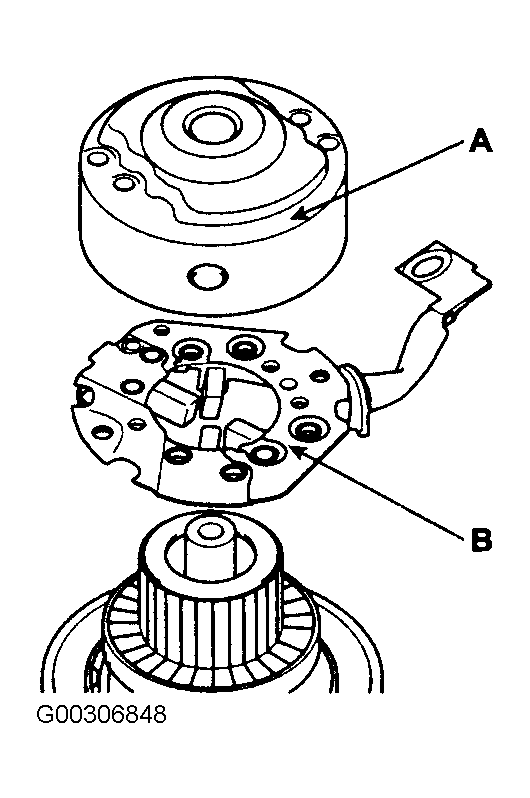

- Remove the rear bracket (A) and brush holder assembly (B). See Fig 4.

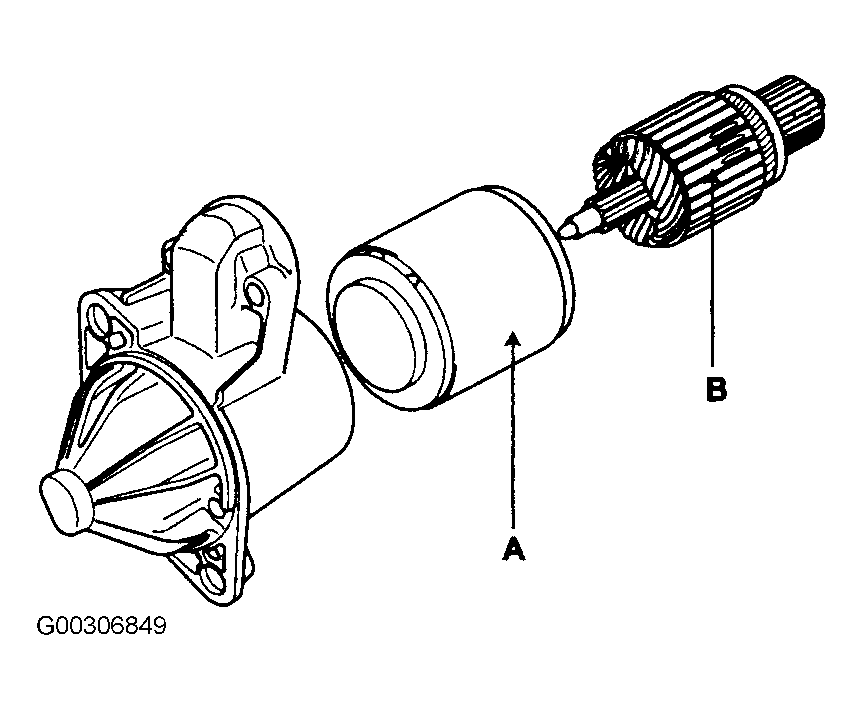

- Remove the yoke (A) and armature (B). See Fig 5.

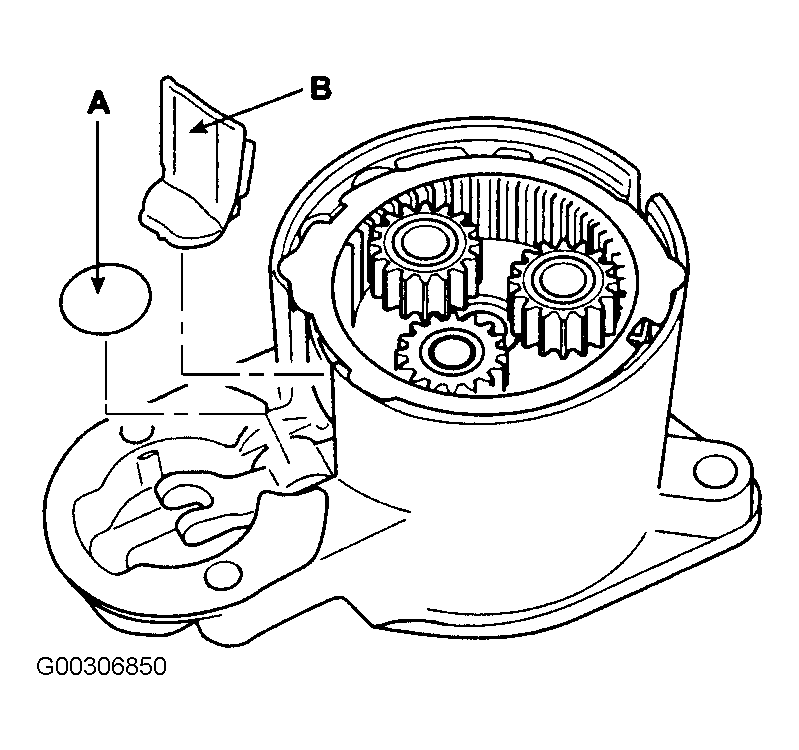

- Remove the lever plate (A) and planetary shaft packing (B). See Fig 6.

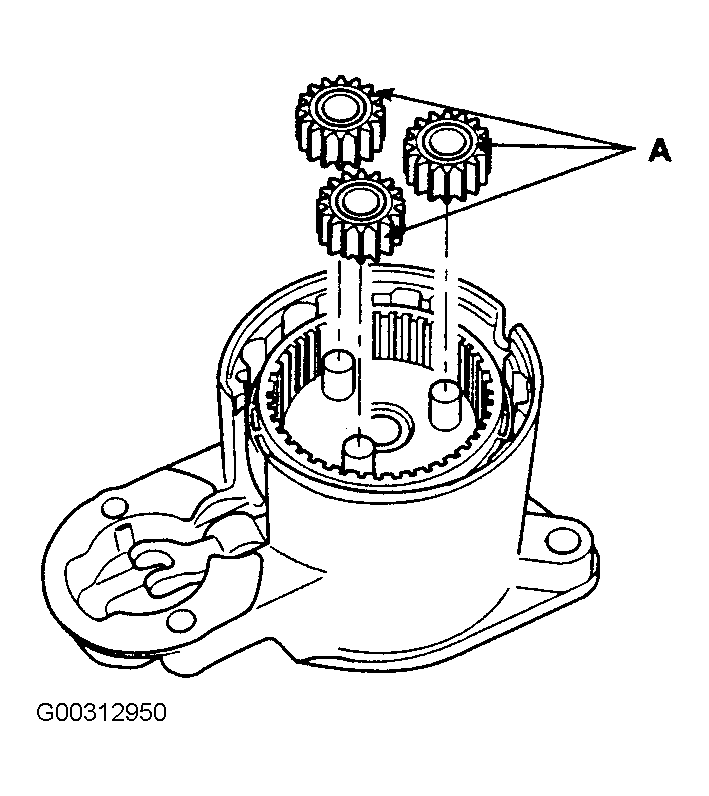

- Disconnect the planetary gear (A). See Fig 7.

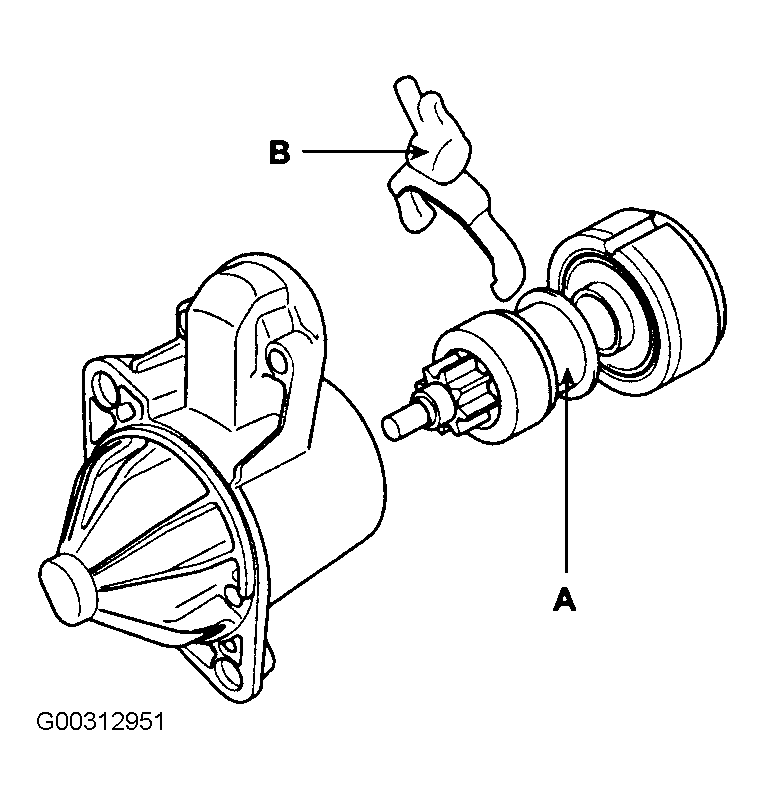

- Disconnect the planetary shaft assembly (A) and lever (B). See Fig 8.

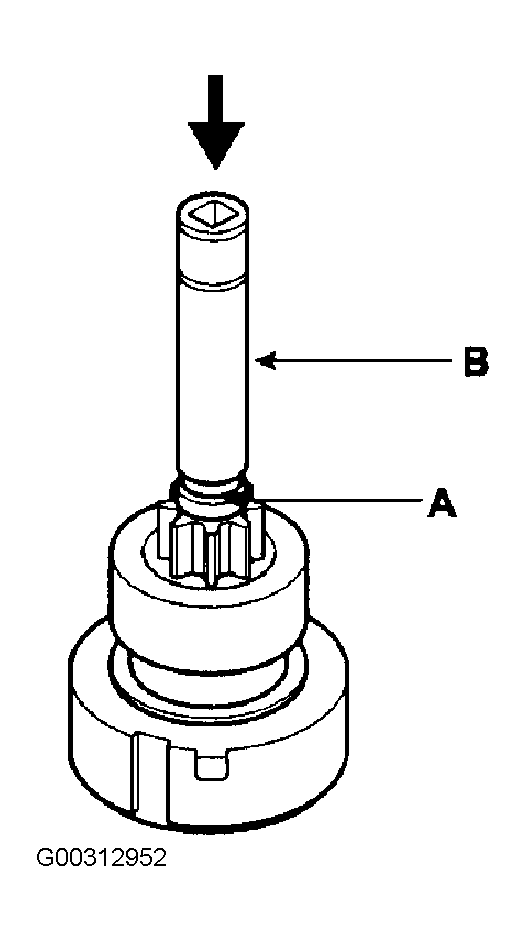

- Press the stop ring (A) using a socket (B). See Fig 9.

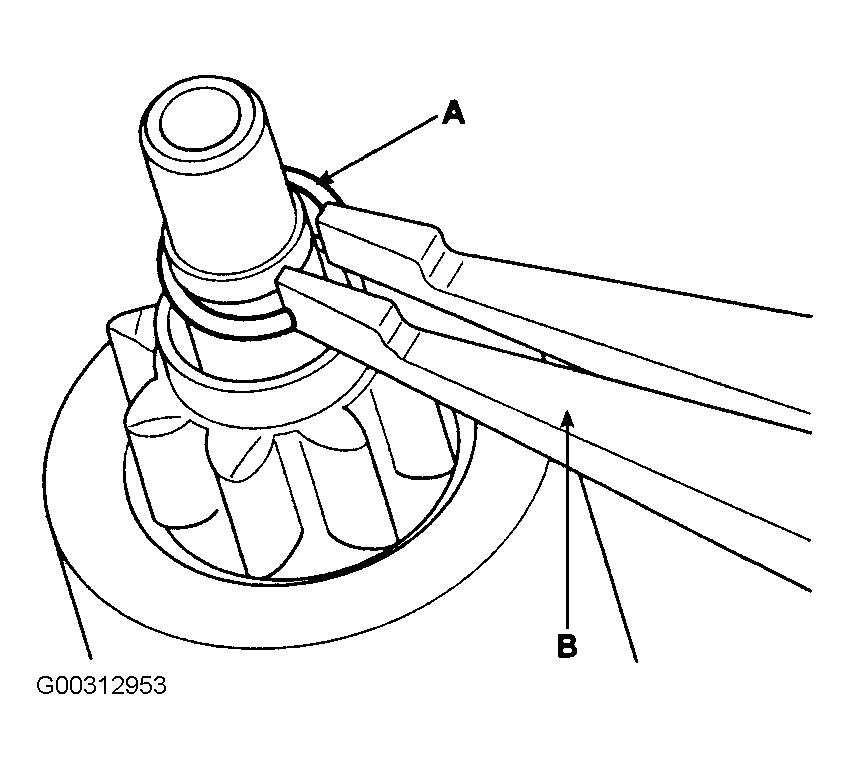

- After removing the stopper (A) using stopper pliers (B). See Fig 10

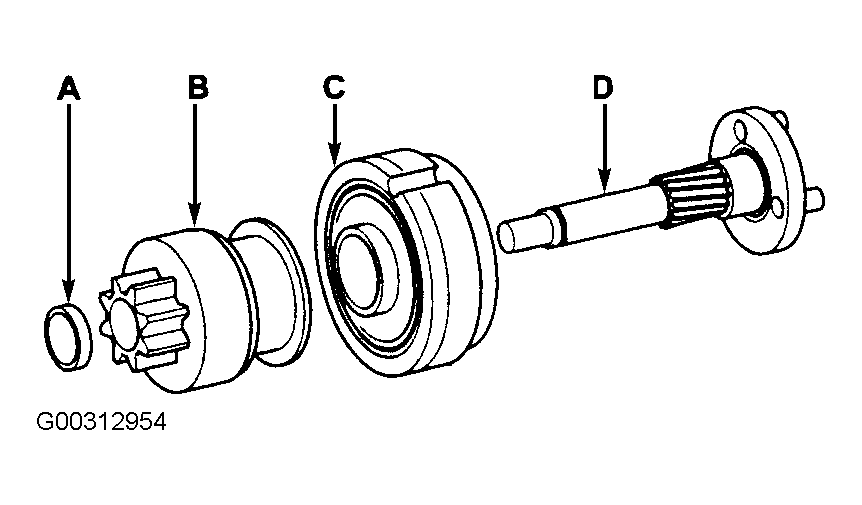

- Disconnect the stop ring (A), overrunning clutch (B), internal gear (C) and planet shaft. See Fig 11.
- Reassembly is the reverse of disassembly.
NOTE:

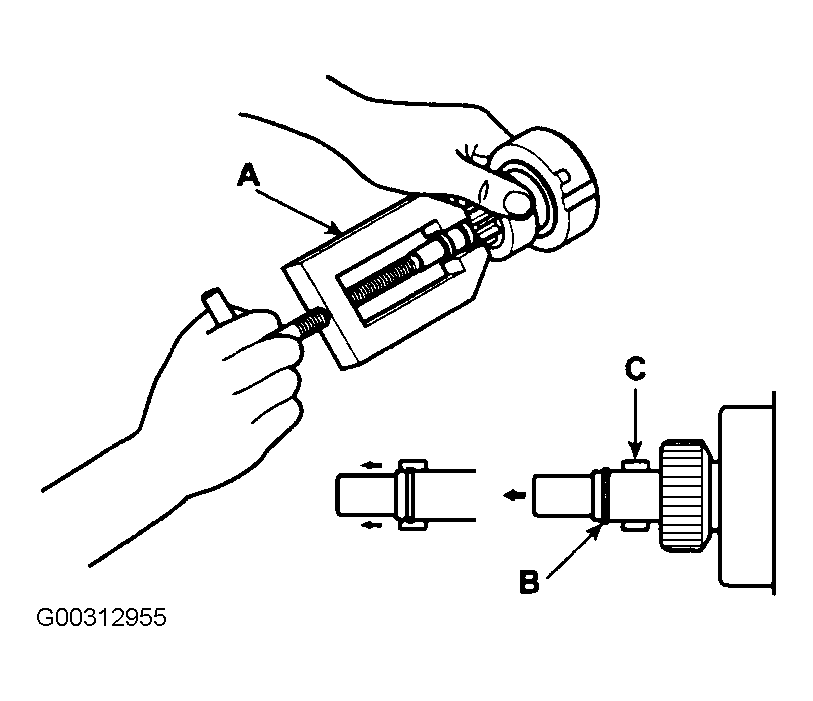

Using a suitable pulling tool (A), pull the overrunning clutch stop ring (B) over the stopper (C). See Fig 12.
