Trailing Arm: Components

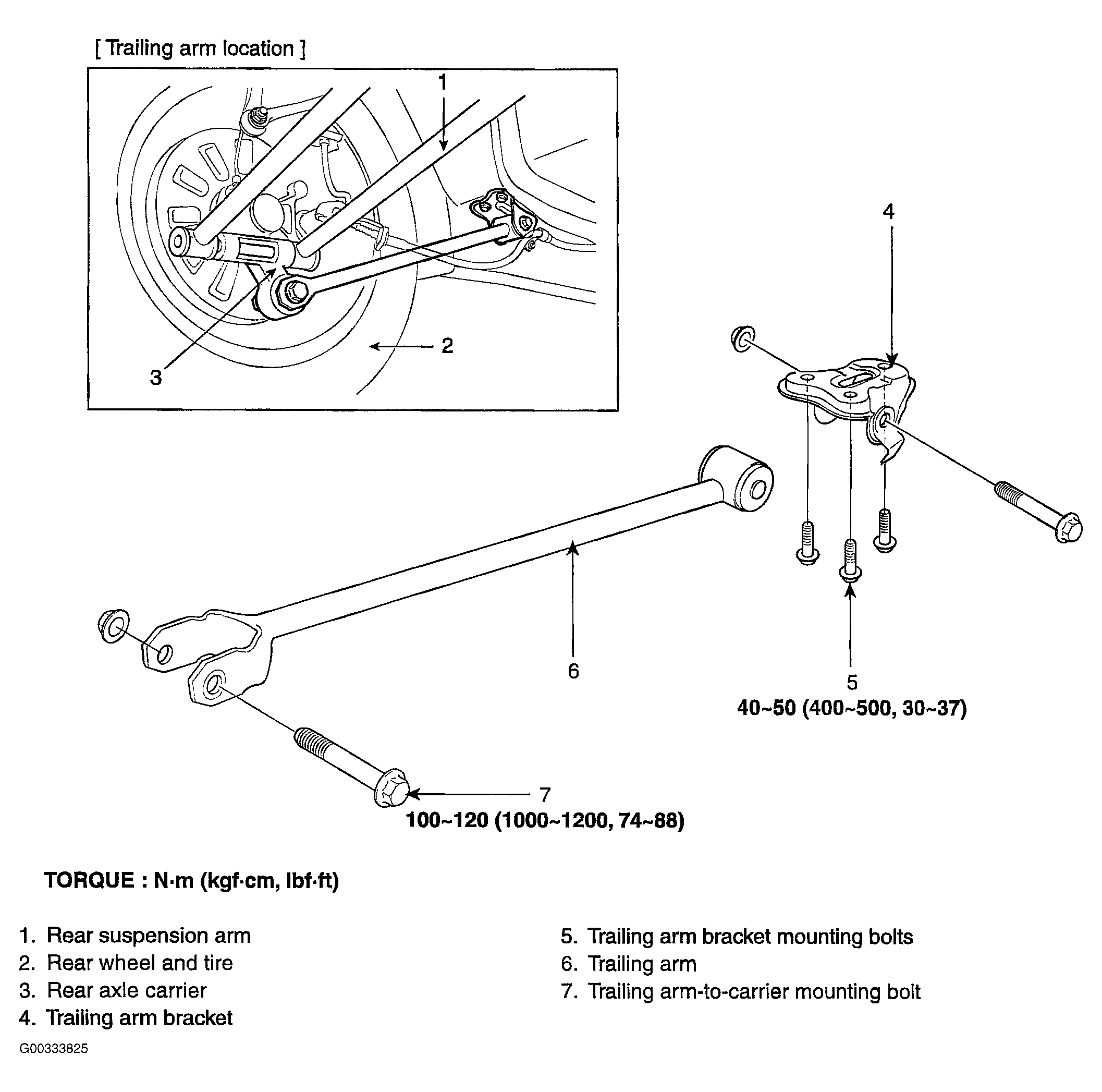

Fig 1: Exploded View Of Trailing Arm With Torque Specifications

G00333825

Courtesy of KIA MOTORS AMERICA, INC.
