Wiper/Washer Systems: Troubleshooting

  1. Wiper low and wiper high does not work.
    Fig 1: Wiper Low And Wiper High Does Not Work Troubleshooting Guide
    G01954054Courtesy of KIA MOTORS AMERICA, INC.
  2. When washer switch is on, wiper does not work.

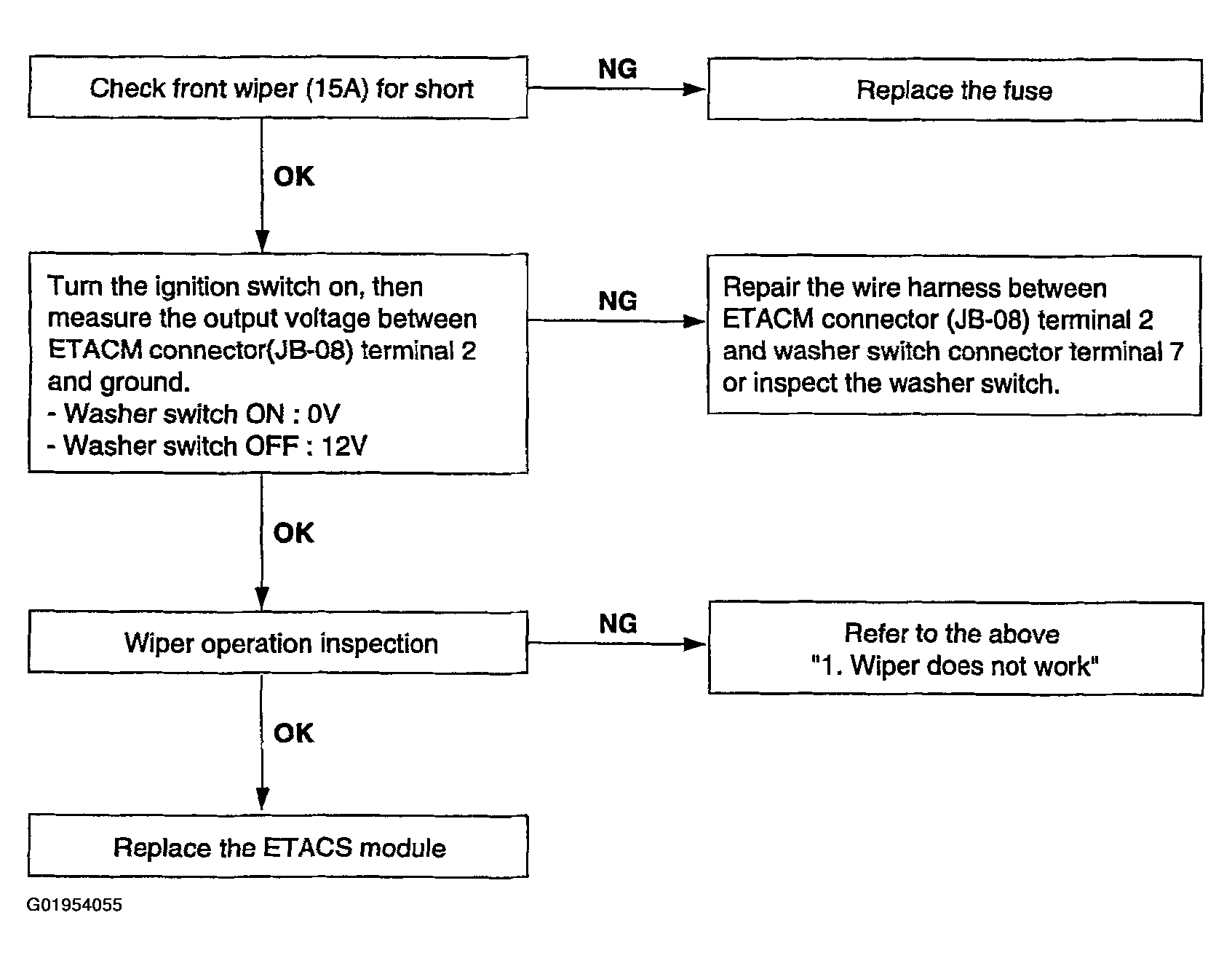

    Fig 2: When Washer Switch Is On, Wiper Does Not Work Troubleshooting Guide
    G01954055Courtesy of KIA MOTORS AMERICA, INC.
