Front Wiper Motor: Installation

  1. Install the wiper arm and blade to the specified position.

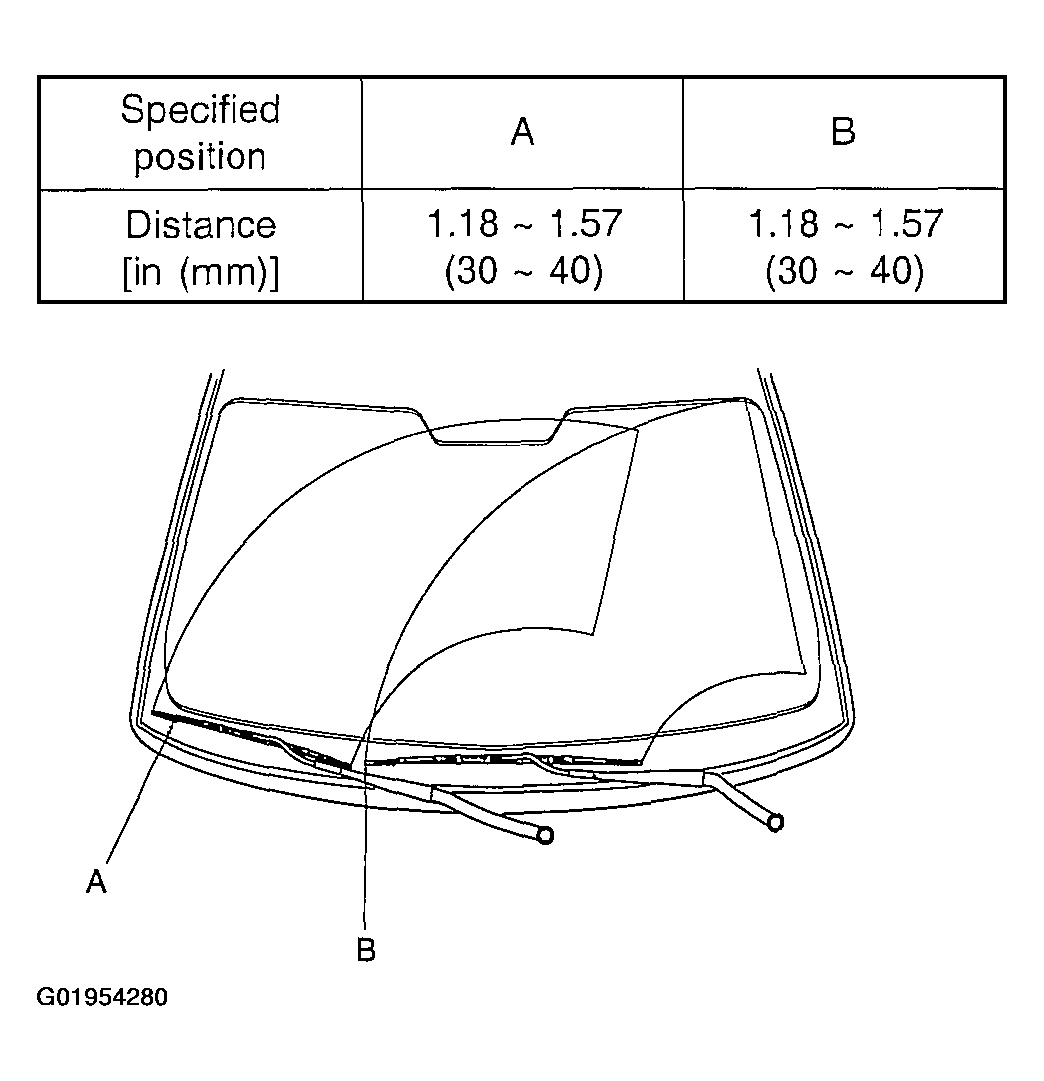

    Fig 1: Installing The Wiper Arm And Blade To The Specified Position
    G01954280Courtesy of KIA MOTORS AMERICA, INC.
  2. Set the washer nozzle on the specified spray position.

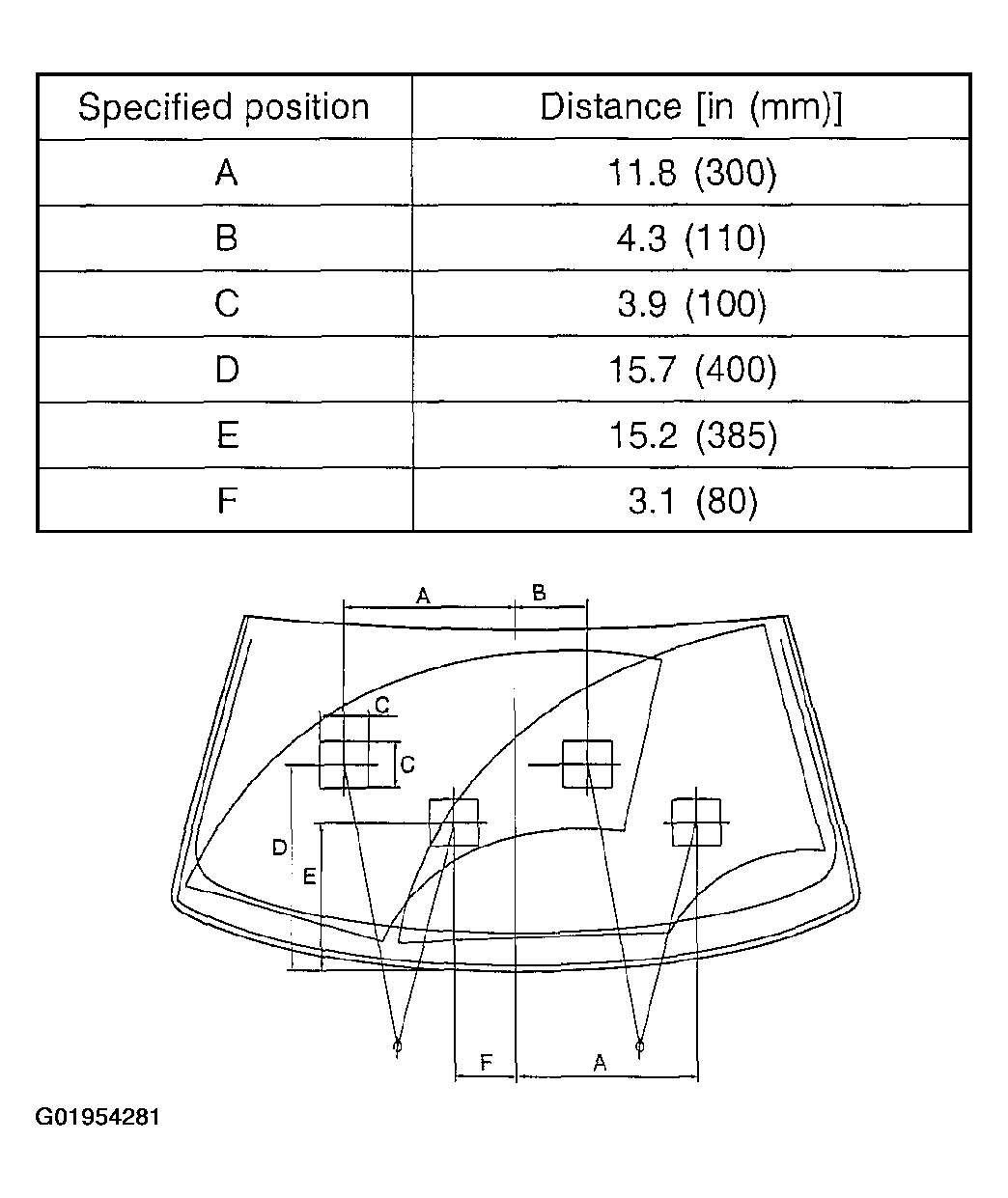

    Fig 2: Setting The Washer Nozzle On The Specified Spray Position
    G01954281Courtesy of KIA MOTORS AMERICA, INC.
