Front Wiper Motor: Components

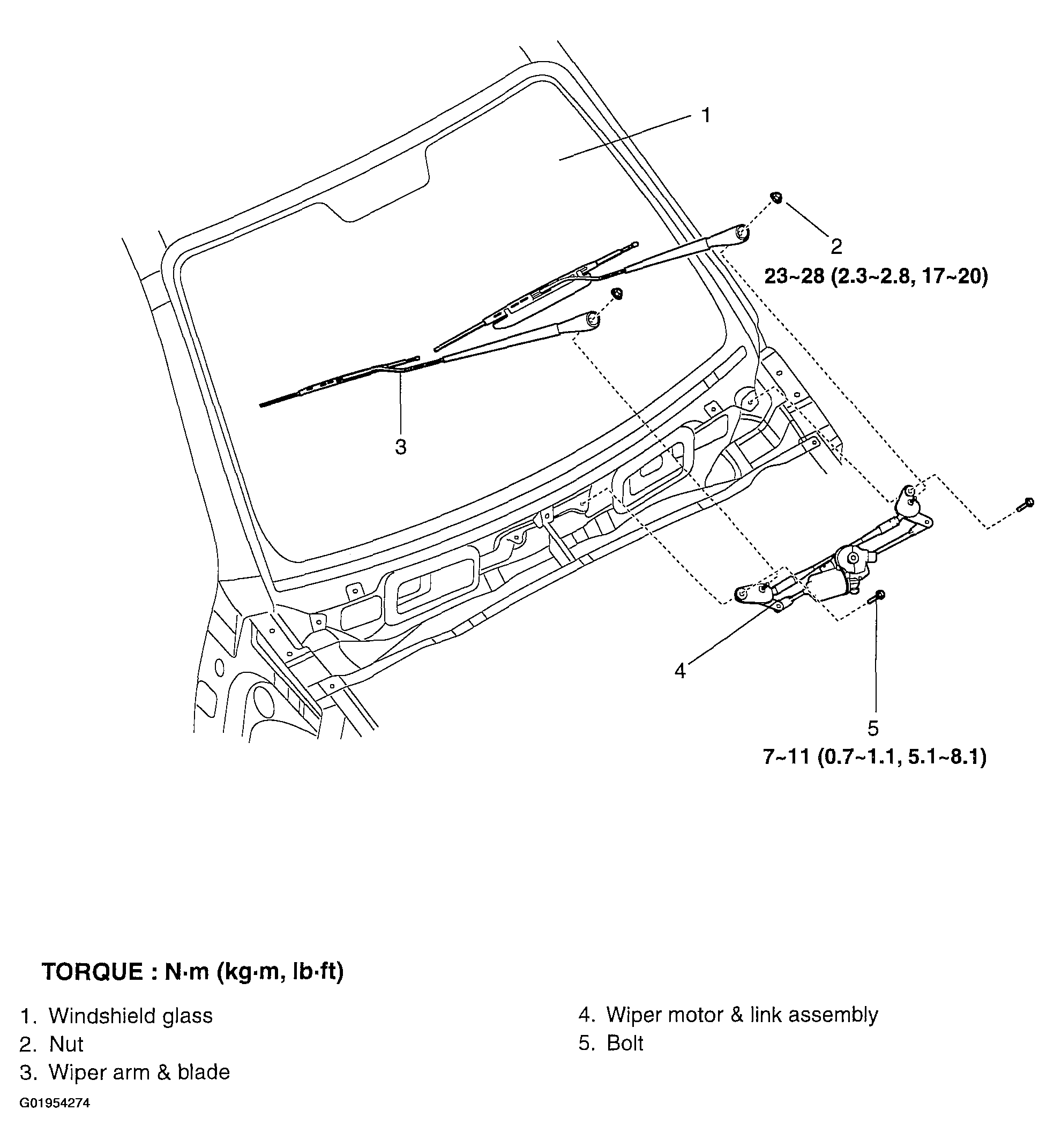

Fig 1: Illustrating Front Wiper Motor Components

G01954274

Courtesy of KIA MOTORS AMERICA, INC.
