Front Washer Motor: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper cover.
  3. Remove the washer hose (A) and the washer motor connector (B).
  4. Remove the washer reservoir after removing 2 bolts.

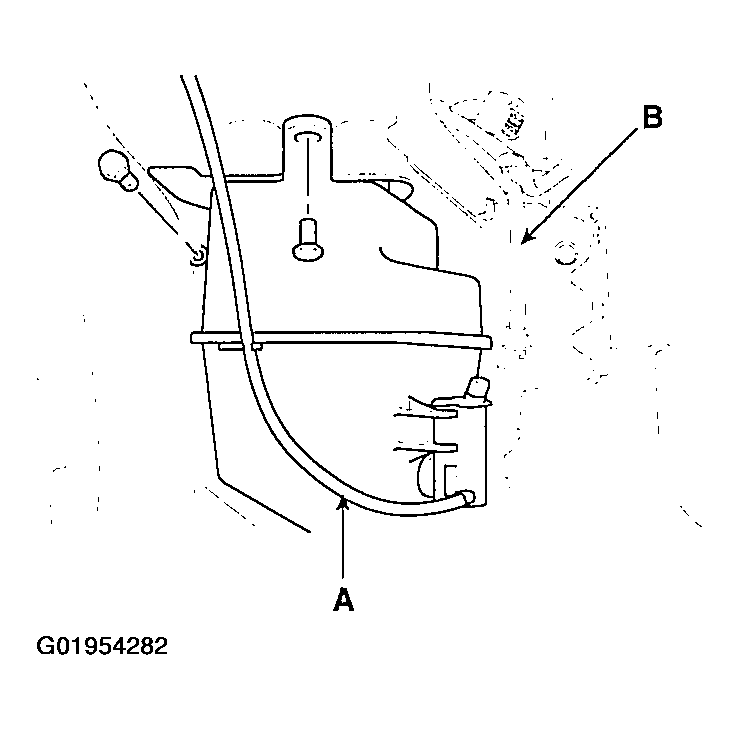

    Fig 1: Removing The Washer Reservoir
    G01954282Courtesy of KIA MOTORS AMERICA, INC.
  5. Installation is the reverse of removal.
