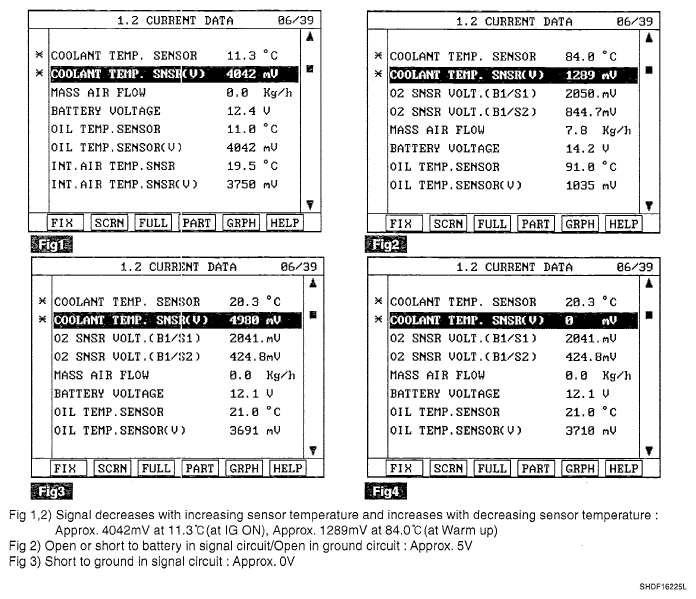

Home >> Kia >> 2007 >> Spectra5 2.0 1, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> DTC Troubleshooting Procedures >> Inspection Chart For Diagnostic Trouble Codes (DTC) >> DTC P0116 Engine Coolant Temperature Circuit Range/Performance >> Signal Waveform And Data
