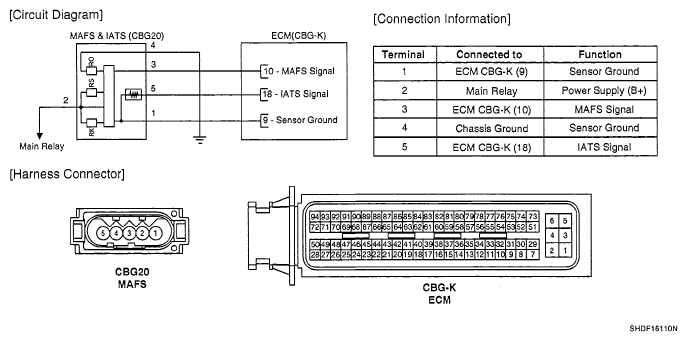

Home >> Kia >> 2007 >> Spectra LX, 2.0 2 >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Gasoline Engine Control System >> Mass Air Flow Sensor (Maps) >> Inspection >> Circuit Diagram
