Rotor Inspection

  1. Check that there is continuity between the slip rings (A).
  2. Check that there is no continuity between the slip rings and the rotor (B) or rotor shaft (C).
  3. If the rotor fails either continuity check, replace the alternator.

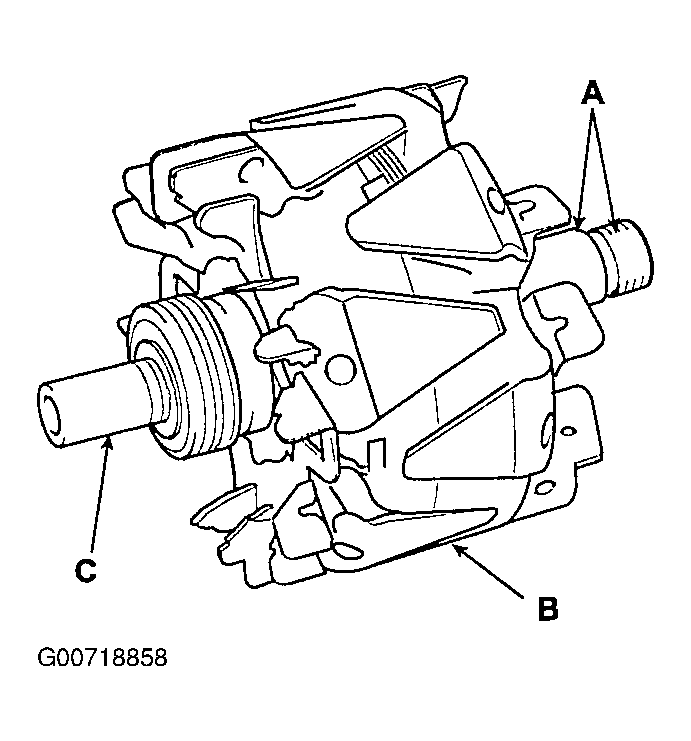

Fig 1: Inspecting Rotor Continuity
G00718858Courtesy of KIA MOTORS AMERICA, INC.
