Power Supply Circuit Inspection

  1. Remove "OIL PAN".
  2. Ignition "ON", Engine "OFF".
  3. Connect the "C106-3 and Shift CM" connector.
  4. Measure resistance between terminal "4" of the TURBINE SENSOR harness connector and chassis ground.

    Specification : approx. 12V

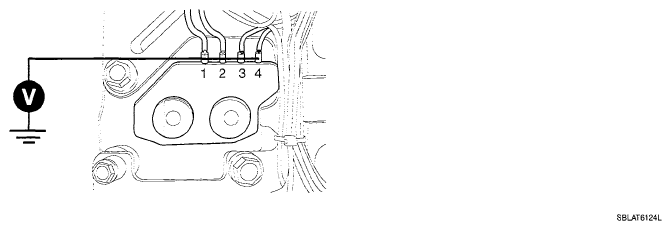

    Fig 1: Measuring Resistance Between Terminal No. 4 Of Turbine Sensor Harness Connector And Chassis Ground
    G05119222Courtesy of KIA MOTORS AMERICA, INC.
  5. Is voltage within specifications ?

    YES

    NO

    • Check for open or short in harness. Repair as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure. If power circuit in harness is OK, Substitute with a known-good Shift CM and check for proper operation. If the problem is corrected, replace Shift CM as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
