Abs Control

NORMAL BRAKING without ABS

VALVE OPERATION REFERENCE

	Inlet valve (EV)	Outlet valve (AV)	Pump motor
Operation	Open	Close	OFF

Fig 1: ABS Control Normal Mode Circuit Diagram

G05119571

Courtesy of KIA MOTORS AMERICA, INC.

DECREASE MODE

VALVE OPERATION REFERENCE

	Inlet valve (EV)	Outlet valve (AV)	Pump motor
Operation	Close	Open	ON (Motor speed control)

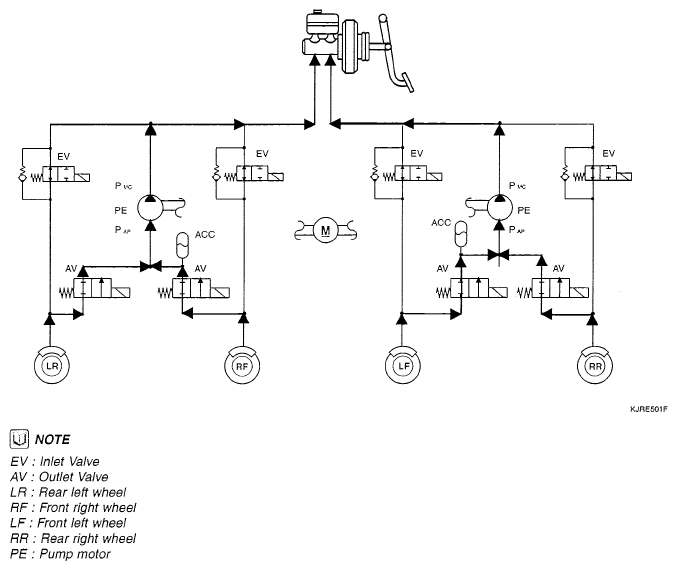

Fig 2: ABS Control Decrease Mode Circuit Diagram

G05119572

Courtesy of KIA MOTORS AMERICA, INC.

HOLD MODE

VALVE OPERATION REFERENCE

	Inlet valve (EV)	Outlet valve (AV)	Pump motor
Operation	Close	Close	ON (Motor speed control)

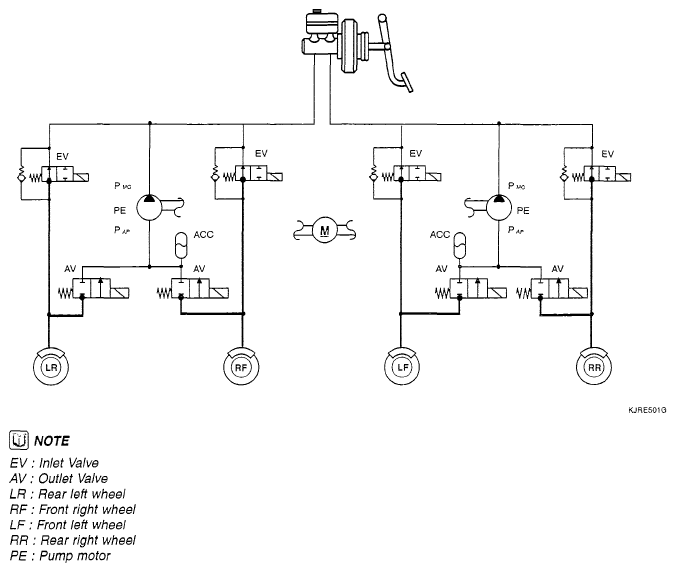

Fig 3: ABS Control Hold Mode Circuit Diagram

G05119573

Courtesy of KIA MOTORS AMERICA, INC.

INCREASE MODE

VALVE OPERATION REFERENCE

	Inlet valve (EV)	Outlet valve (AV)	Pump motor
Operation	Open	Close	ON (Motor speed control)

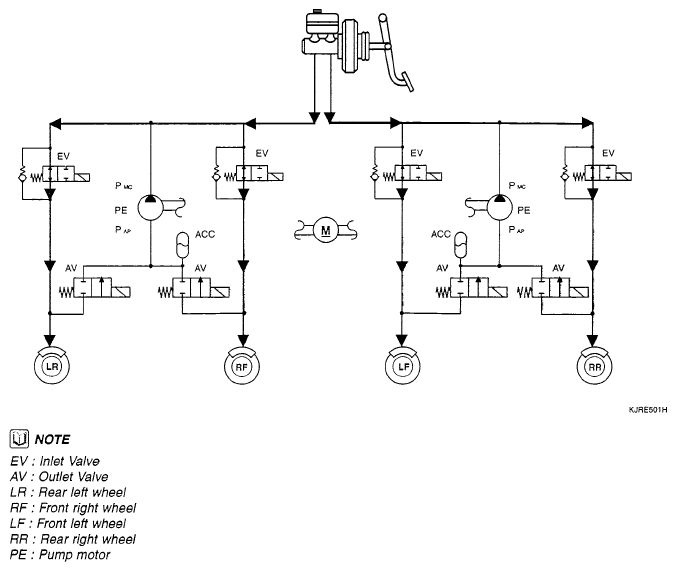

Fig 4: ABS Control Increase Mode Circuit Diagram

G05119574

Courtesy of KIA MOTORS AMERICA, INC.
