Timing Chain: Components

Fig 1: Exploded View Of Timing Chain System With Torque Specification (1 Of 2)

G07767739

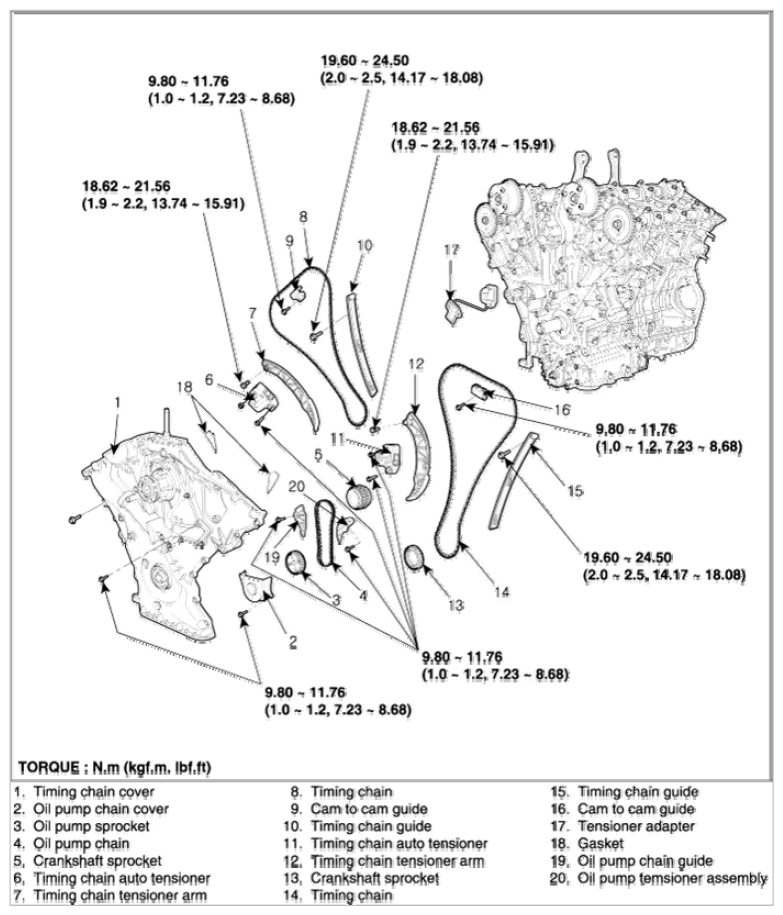

Fig 2: Exploded View Of Timing Chain System With Torque Specification (2 Of 2)

G07767740
