Fluid Replacement

  1. Wipe fluid level and drain plug and surrounding areas clean.
  2. Place suitable container under transfer case.
  3. Remove drain plug.
  4. Remove fluid level plug.
  5. Allow all lubricant to drain.
  6. Install drain plug and torque to 20-30 N.m (14-22 lb. ft).
  7. Add approved lubricant through fluid level plug opening until lubricant just begins to drip back out of opening.
  8. Install fluid level plug and torque to 20-30 N.m (14 -22 lb. ft).

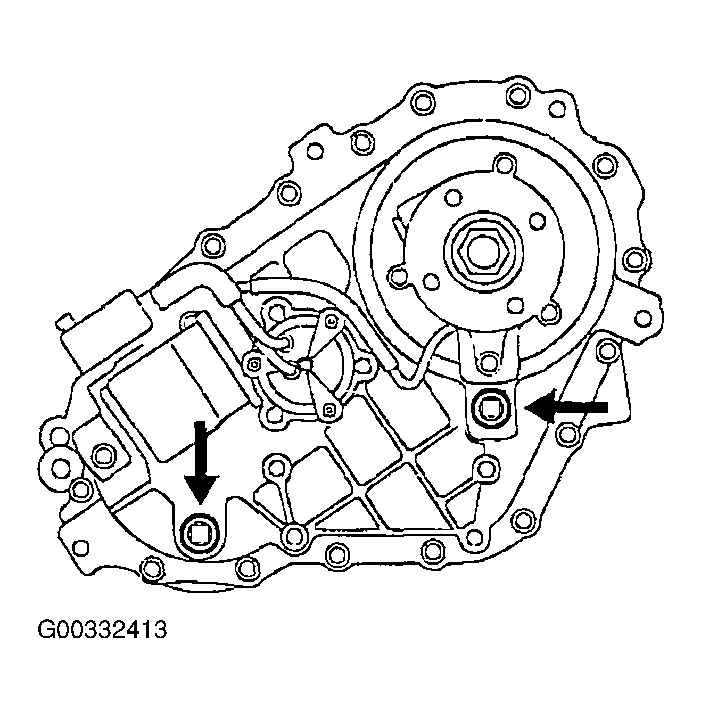

Fig 1: Identifying Transfer Case Fill and Drain Plugs
G00332413Courtesy of KIA MOTORS AMERICA, INC.
