Electric Shift Transfer: Notes

1. If a malfunction occurs, the 4WD indicator lamp will blink to warn the driver.

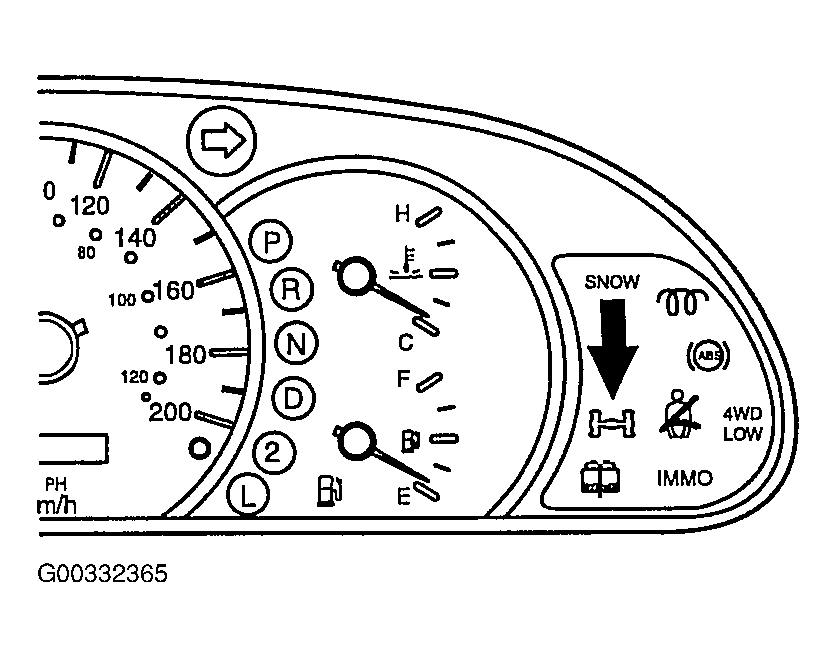

   Fig 1: Identifying Instrument Panel Cluster Indicator Lamps

   Courtesy of KIA MOTORS AMERICA, INC.
2. Following items may be indicated as a malfunction:
   1. TCCM
   2. Shift motor
   3. Magnetic synchronizer clutch
   4. Speed sensor
   5. Hub solenoid
   6. Selector switch
   7. Motor position sensor
3. DTC Table
   Fig 2: DTC Table

   Courtesy of KIA MOTORS AMERICA, INC.
4. DTC Indication:
   1. Indicator lamp check (0.6S)
   2. Lamp OFF (3S)
   3. DTC Indication
   4. OFF (3S)
   5. Repeat steps 3 and 4.
   6. Repeat steps 3, 4 and 5 for additional faults.
5. Meaning of code:
   1. Lamp ON for 0.5 second
   2. Lamp ON for 1 second
6. EX) TCCM Fault (DTC : 001):
   1. Indicator lamp check (0.6S)
   2. Lamp OFF (3S)
   3. Lamp ON (0.5S)
   4. Lamp OFF (0.5S)
   5. Lamp ON (0.5S)
   6. Lamp OFF (0.5S)
   7. Lamp ON (1S)
   8. Lamp OFF (3S)
   9. Repeat steps 3-8.
