Hi-Scan Check

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch off.
  2. Connect the Hi-Scan Pro connector to the data link connector located under the crash pad.

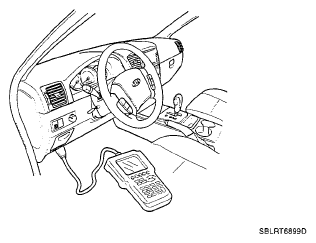

    Fig 1: Identifying Hi-Scan Pro Connector To Data Link Connector
    G05119487Courtesy of KIA MOTORS AMERICA, INC.
  3. Turn the ignition switch on and power on the Hi-Scan Pro.
  4. Read DTCs.
  5. Find and repair the trouble, and clear the DTCs using Hi-Scan Pro.
  6. Disconnect the Hi-Scan Pro.
  7. Confirm proper system operation;
    • Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.
