Component Inspection

[CHECK STATUS OF ALL TPM SENSOR]

1. Turn ON 'TPMS exciter'.
2. Select "TIRE SNSR CONFIG(EXCITER)" mode. Execute "SET SENSOR STATUS" of each wheel.

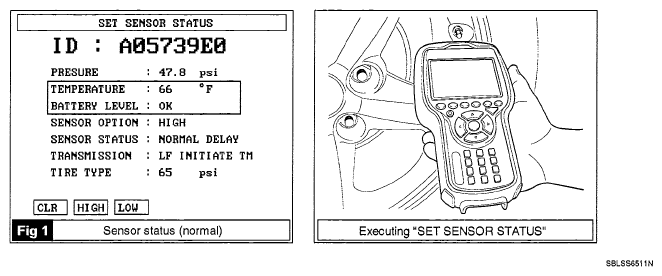

   Fig 1: TPMS Exciter Display - SET SENSOR STATUS

   Courtesy of KIA MOTORS AMERICA, INC.
3. Are status of all sensors "normal"?

   YES

   • Check TPM receiver RF shielding.
   • If it is OK, go to "Check TPM receiver" as follows.
   • Repair if necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Change status of all TPM sensors into "normal" status with 'TPMS exciter'.
   • Go to "VERIFICATION OF VEHICLE REPAIR " procedure.

[CHECK TPM RECEIVER]

1. Connect 'TPMS exciter' or scan tool to Data Link Connector (DLC).
   Fig 2: Connecting 'TPMS Exciter' Or Scan Tool To Data Link Connector (DLC)

   Courtesy of KIA MOTORS AMERICA, INC.
2. Clear DTC.
3. IG OFF & IG ON. Wait 4 minutes.
4. Execute "Diagnostic Trouble Codes (DTCs)"
5. Is 'C1660' present ?

   YES

   • Substitute with a known-good TPM Receiver module and check for proper operation.
   • If the problem is corrected, replace TPM Receiver module and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • TPM receiver complete successful Auto-Learn.
   • System is OK.
