Monitor Scan Tool Data

WARNING: This page is about a different variant/trim than selected.

Park the vehicle on a level surface.
Connect 'TPMS exciter' or scan tool to Data Link Connector (DLC).

Fig 1: Connecting 'TPMS Exciter' Or Scan Tool To Data Link Connector (DLC)
Courtesy of KIA MOTORS AMERICA, INC.
Select "TPMS DIAGNOSIS" mode.
Select the "FULL" mode of "CURRENT DATA" function.
Monitor the parameter of RF RSSI background on the 'TPMS exciter' or scan tool after 9 minutes.
Specification: "RSSI background" is less than 1.9V

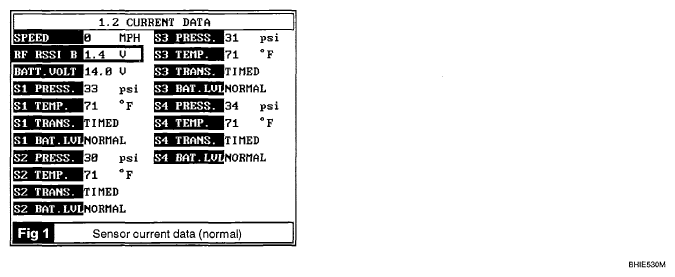

Fig 2: TPMS Exciter Display - CURRENT DATA
Courtesy of KIA MOTORS AMERICA, INC.
Is parameter within specifications?
YES
- Fault is intermittent. It has been repaired and TPM receiver module memory is not cleared yet.
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Substitute with a known-good TPM receiver module and check for proper operation.
- If the problem is corrected, replace TPM receiver module and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
