Monitor Scan Tool Data

WARNING: This page is about a different variant/trim than selected.

Start engine and turn headight and heat wire on.
Connect 'TPMS exciter' or scan tool to Data Link Connector (DLC).

Fig 1: Connecting 'TPMS Exciter' Or Scan Tool To Data Link Connector (DLC)
Courtesy of KIA MOTORS AMERICA, INC.
Select "TPMS DIAGNOSIS" mode.
Select the "FULL" mode of "CURRENT DATA" function.
Maintaining ENG. RPM at 2,500 RPM (idle) over 2 minutes.
Monitor the parameter of BATT. VOLT on the 'TPMS exciter' or scan tool.
Specification: 'BATT. VOLT' is less than 16.5 V

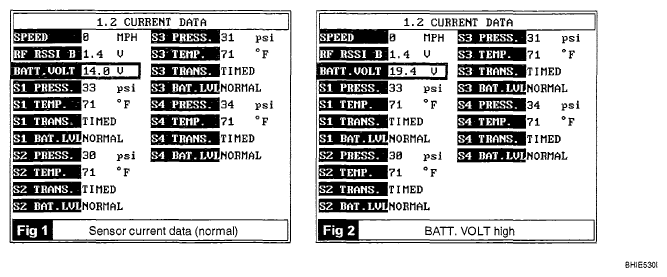

Fig 2: TPMS Exciter Display - CURRENT DATA
Courtesy of KIA MOTORS AMERICA, INC.
Is parameter normal?
YES
- Fault is intermittent. It has been repaired and TPM receiver module memory is not cleared yet.
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to TROUBLESHOOTING .
