SRS Control Module: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the ignition key from the vehicle.
  2. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  3. Disconnect the DAB, PAB, KAB, CAB and BPT connectors.
  4. Remove the console lid cover. Refer to BODY (INTERIOR AND EXTERIOR) .
  5. Disconnect the SRSCM harness connector after pulling the connector locking lever.

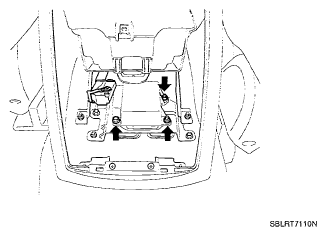

    Fig 1: Locating SRSCM Mounting Bolt
    G05119454Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the SRSCM mounting bolt (1EA) and nuts (2EA) from the SRSCM, then remove the SRSCM.
