Front Impact Sensor (FIS): Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Removal of the airbag must be performed according to the precautions/ procedures described previously.
  • Before disconnecting the front impact sensor connector, disconnect the front airbag connector(s).
  • Do not turn the ignition switch ON and do not connect the battery cable while replacing the front impact sensor.
  1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
  2. Remove the Front bumper seal board.
  3. Remove the Front Impact Sensor mounting bolt.

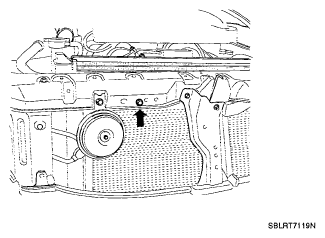

    Fig 1: Locating Front Impact Sensor Mounting Bolt
    G05119481Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the Front Impact Sensor connector.
