Air Bag Module And Clock Spring: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the battery negative cable and wait for at least three minutes before beginning work.
Remove the airbag module mounting bolts (2EA).

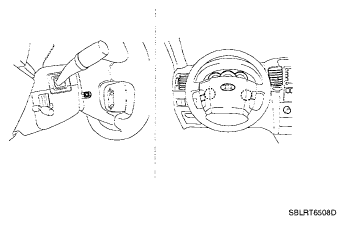

Fig 1: Identifying Airbag Module Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the horn connector (A).

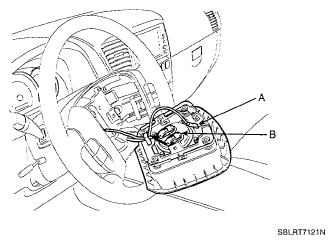

Fig 2: Disconnecting Horn Connector And Driver Airbag Module Connector
Courtesy of KIA MOTORS AMERICA, INC.
Release the connector locking pin, then disconnect the driver airbag module connector (B).
CAUTION: The removed airbag module should be stored in a clean, dry place with the pad cover face up.
Remove the steering wheel with SST (SST No. 09561-11001) after unfastening the mounting nut.

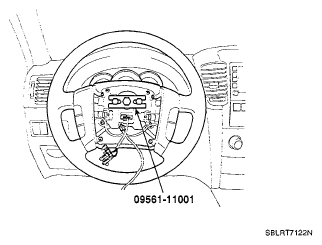

Fig 3: Removing Steering Wheel With SST
Courtesy of KIA MOTORS AMERICA, INC.
Remove the steering wheel column cover after unscrewing 3 screws.

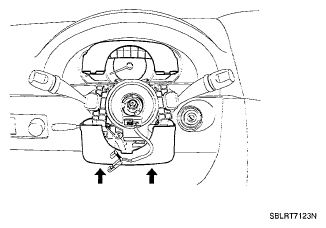

Fig 4: Locating Steering Wheel Column Cover Screws
Courtesy of KIA MOTORS AMERICA, INC.
Unscrew the clock spring tightening screws (4EA).

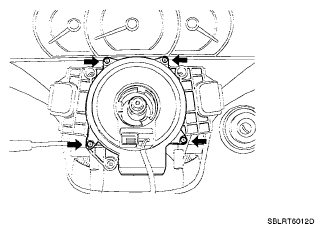

Fig 5: Locating Clock Spring Screws
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the clock spring wiring harness and the horn wiring harness connector from the clock spring.

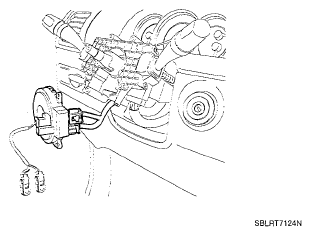

Fig 6: Disconnecting Clock Spring Wiring Harness
Courtesy of KIA MOTORS AMERICA, INC.
