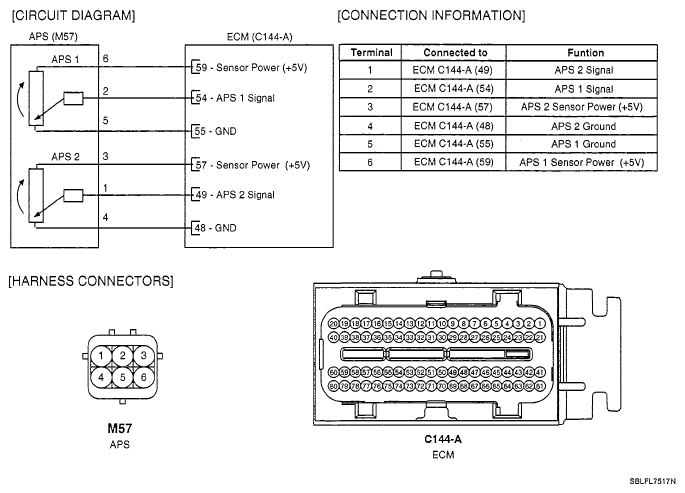

Home >> Kia >> 2007 >> Sorento Base, A5SR2 >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Gasoline Engine Control System >> Accelerator Position Sensor (APS) >> Inspection >> Schematic Diagram
