Back Warning System: Buzzer: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the audio unit. Refer to the AUDIO .
  3. Remove the buzzer (A) after loosening the nut and disconnecting the connector.

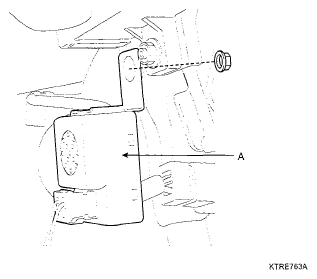

    Fig 1: Identifying Buzzer
    G05119865Courtesy of KIA MOTORS AMERICA, INC.
