Passenger Compartment Fuse Box: Notes

NOTE: Passenger compartment fuse box is located behind access panel on driver's side kick panel. See Fig 1.

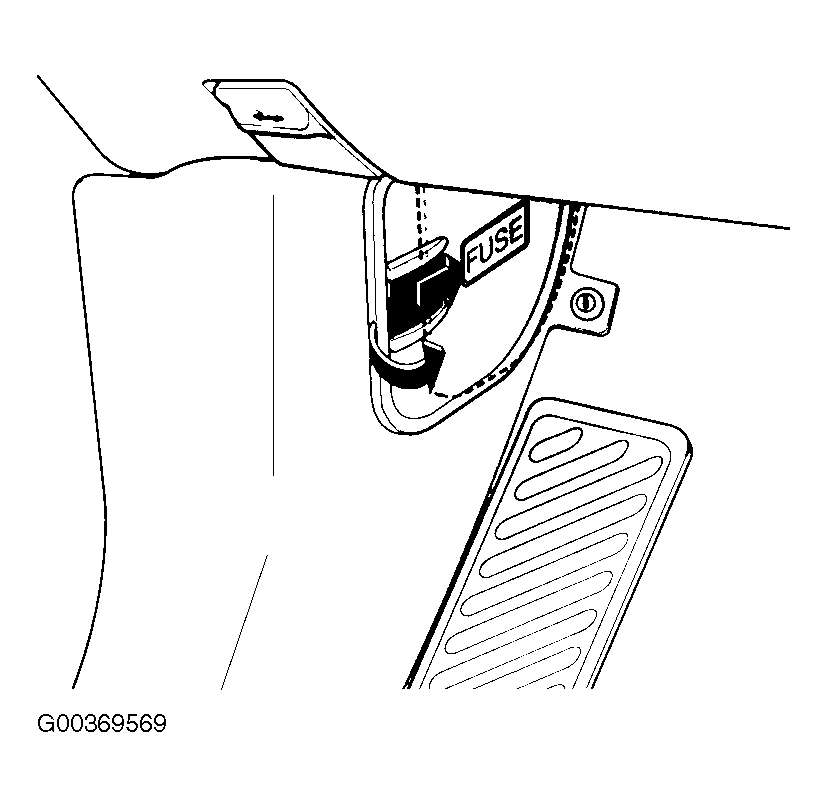

Fig 1: Locating Fuse Box - Passenger Compartment

Courtesy of KIA MOTORS AMERICA, INC.

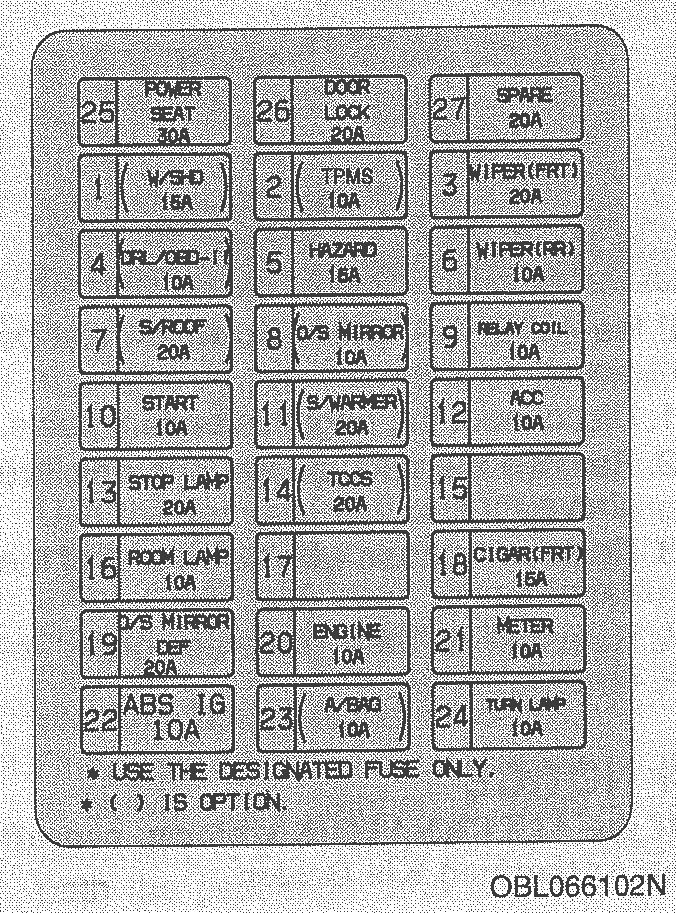

Fig 2: Locating & Identifying Fuses - Passenger Compartment

Courtesy of KIA MOTORS AMERICA, INC.
