3.8L SORENTO (Bl) P0110 Reprogram (ENG036)

Publication date: 2007-11-01
Reference number: ENG036

3.8L SORENTO (BL) P0110 REPROGRAM

3.8L SORENTO (BL) P0110 REPROGRAM

TECHNICAL SERVICE BULLETIN

Reference Number(s): ENGINE 036, Date of Issue:  November 01, 2007
KIA: Sorento (BL)
GROUP: Engine

Service Information

This service bulletin provides information related to a Powertrain Control Module (PCM) upgrade for 2007 Sorento (BL) 3.8L models.

Some 2007MY Sorento (BL) models with a 3.8L may exhibit Malfunction Indicator Lamp (MIL) illumination with the following Diagnostic Trouble Code (DTC) stored in the PCM:

To correct this DTC occurrence, the PCM should be reprogrammed using the GDS download as described in this bulletin.

NOTE: Global Diagnostic System (GDS) users should access the "Notice" function from the GDS Main Screen for instructions regarding ECU upgrade events.
NOTE:
  • A fully charged battery is necessary before PCM upgrade can take place. DO NOT connect a battery charger to the vehicle during PCM upgrade. Make sure the blower motor is 'OFF' during PCM upgrade.
  • All PCM upgrades must be done with the ignition key in the 'ON' position.
  • Be careful not to disconnect any cables connected to the vehicle or GDS during the PCM upgrade procedure.
  • DO NOT start the engine during PCM upgrade.
  • DO NOT turn the ignition key 'OFF' or interrupt the power supply during PCM upgrade.
  • When the PCM upgrade is completed, turn the ignition key 'OFF' and wait 20 seconds before starting the engine.
  • ONLY use approved PCM upgrade software designated for the correct model, year and engine size. Failure to do so may create other driveability issues due to the use of the incorrect PCM calibration.
ROM ID INFORMATION TABLE

MODEL YEAR IMMOBILIZER COMMUNICATION BUS PCM P/N ROM ID
CURRENT NEW
2007 N K-Line (KWP 2000) 39106 3C360 BL6N38*S2**653D* BL6N38*S2**653E*
N CAN 39106 3C361 BL7N38*S2**7F4C*
BL6N38*S2**7D0C*		 BL7N38*S2**7F4E*

Service Procedure

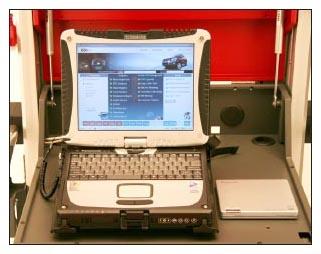

  1. Connect the power supply cable to the GDS tool.
    NOTE: If attempting to perform the PCM upgrade with the power supply cable disconnected from the GDS tool, be sure to check that the GDS tool is fully charged before PCM upgrade. If the GDS tool is not fully charged, failure to perform the PCM upgrade may occur. Therefore, it is strongly recommended that the power supply connector be connected to the GDS tool.
  2. Connect the USB cable between the Vehicle Communications Interface (VCI) and the GDS tool.
    NOTE: When performing the PCM upgrade using the GDS tool, wireless communication between the VCI and GDS tool is not available. Therefore, be sure to connect the USB cable between the VCI and the GDS tool.
  3. Connect the Main 16-pin DLC cable (GHDM - 241000) to the VCI.
  4. Connect the Main 16-pin DLC cable (GHDM - 241000) to the OBD-II connector, located under the driver's side of the instrument panel.

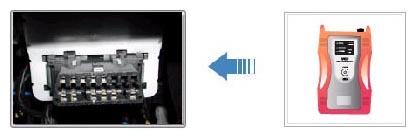

    Fig 2: View Of OBD-II Connector
    G05608384Courtesy of KIA MOTORS AMERICA, INC.
  5. With the ignition key ON, turn ON the VCI and GDS tool. Access the GDS vehicle identification number (VIN) screen and configure the vehicle using the VIN AUTO DETECT Function.
  6. At the GDS Main Screen, select ECU UPGRADE from the menu buttons located on the bottom of the screen Next, select Auto Mode  , Engine.
  7. Perform the PCM upgrade in accordance with normal GDS tool PCM upgrade procedures.
    NOTE: Global Diagnostic System (GDS) users should access the "Notice" function from the GDS Main Screen for instructions regarding ECU upgrade events.
    NOTE: Do NOT attempt to perform a Manual Mode PCM upgrade unless Auto Mode fails. Always follow the instructions given on the GDS tool in either Auto or Manual mode. See table for Manual Mode passwords.
    * MANUAL MODE PCM UPGRADE PASSWORDS

    MODEL YEAR IMMOBILIZER COMMUNICATION BUS PCM P/N MANUAL MODE PASSWORD
    2007 N K-line (KWP 2000) 39106 3C360 3360
    N CAN-bus 39106 3C361 3361
    * Do NOT perform Manual Mode PCM upgrade unless Auto Mode fails.
  8. When the GDS tool reports that the PCM upgrade has been successfully completed, click OK, turn OFF the ignition key, and wait at least 20 seconds before attempting to start the engine.
  9. Check for Diagnostic Trouble Codes using the GDS and erase any DTCs stored in the Engine and Transaxle control modules
  10. Confirm proper shift points of A/T units after reprogramming to reduce customer complaints of excessive shift shock and improper shift points.

AFFECTED PRODUCTION RANGE

All 2007MY Sorento (BL) vehicles equipped with 3.8L engine

WARRANTY CLAIM INFORMATION

WARRANTY CLAIM INFORMATION

Claim Type Causal P/N Qty. N Code C Code Repair Description Labor Op Code Time Related Parts Qty.
W 39106 3C360 (K-line /KWP2000, Non-Immobilizer)(1) 0 N69 C40 PCM Upgrade 39110F34 0.5 NA 0
39106 3C361 (CAN-bus, Non-Immobilizer)(2) 39110F37 0.4
N69: Warning Light ON C40: Improper Adjustment
(1) Vehicles using CAN-bus reflash production dates: 9/18/2006~5/4/2007
(2) Vehicles using K-line reflash production dates: 6/13/2006~9/17/2006
