Signal Circuit Inspection

Measure resistance between each terminal of the sensor harness connector and TCM (PCM) harness connector as below.

Specification:

RESISTANCE SPECIFICATION CHART

Pin No of "TRANSAXLE RANGE SWITCH"	C21 No.1	C21 No.3	C21 No.4	C21 No.7
Pin No of "PCM" harness	C01-1 No.6	C01-1 No.3	C01-1 No.5	C01-1 No.4
Specification	0Ω	0Ω	0Ω	0Ω

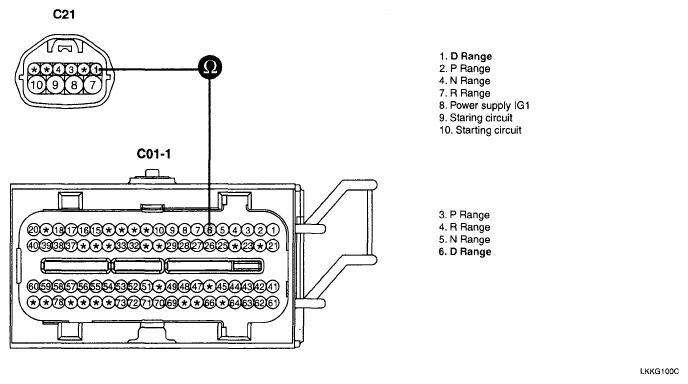

Fig 1: Measuring Resistance Between Each Terminal Of Sensor And TCM (PCM) Harness Connector

Courtesy of KIA MOTORS AMERICA, INC.

Is resistance within specifications?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Check for Open in harness. Repair as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
