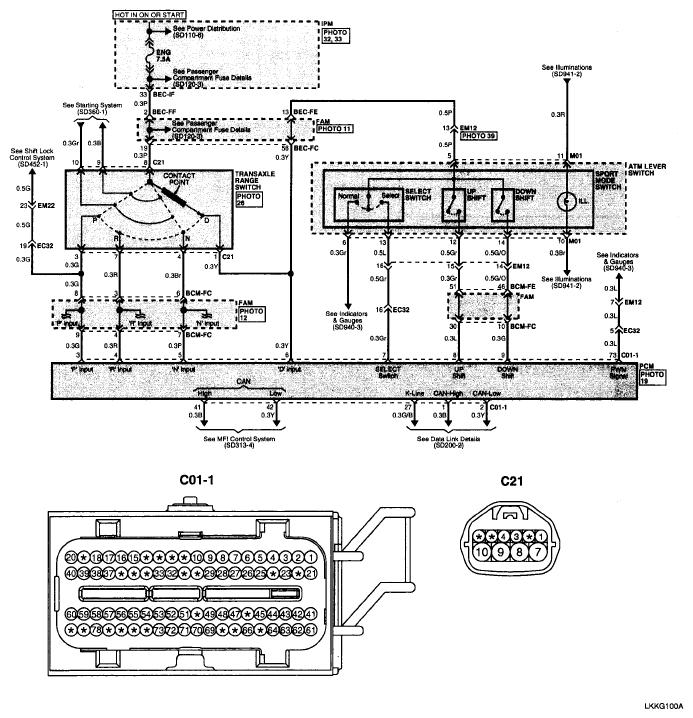

Home >> Kia >> 2007 >> Sedona Base >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle System >> Diagnosis Trouble Codes Testing >> DTC P0707 Transaxle Range Switch - Low Input >> Schematic Diagram
