Power Steering Hoses: Replacement

Drain the power steering fluid.
Disconnect the pressure tube (A) and suction tube (B) from the power steering oil pump.
Tightening torque N.m (kgf.m, lb.ft):

55-65 (4.5-5.5, 40-47)

Fig 1: Identifying Pressure Tube And Suction Tube
Courtesy of KIA MOTORS AMERICA, INC.

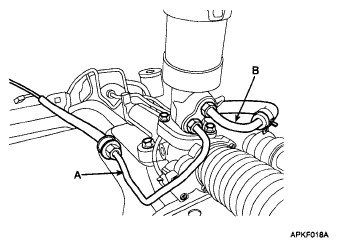

Disconnect the pressure tube (A) and return tube (B) from the valve body housing.
Tightening torque N.m (kgf.m, lb-ft):

12-18 (1.2-1.8, 9-13)

Fig 2: Identifying Pressure Tube And Return Tube
Courtesy of KIA MOTORS AMERICA, INC.
Remove the brackets of the pressure tube and hose from the sub-frame.

Fig 3: Identifying Brackets Of Pressure Tube And Hose
Courtesy of KIA MOTORS AMERICA, INC.
Remove the bracket of the return tube and hose.

Fig 4: Identifying Bracket Of Return Tube And Hose
Courtesy of KIA MOTORS AMERICA, INC.
Remove the under cover and then loosen the oil cooler tube bracket bolts.
NOTE: Be sure to connect between a tube and a hose as shown in the illustration.

Fig 5: Identifying Tube And Hose Connecting Position
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
After installation, bleed the power steering system. (See AIR BLEEDING )
