Home >> Kia >> 2007 >> Sedona Base >> Repair and Diagnosis >> Steering >> Power Steering >> Mechanical Power Steering System >> Components

Mechanical Power Steering System: Components

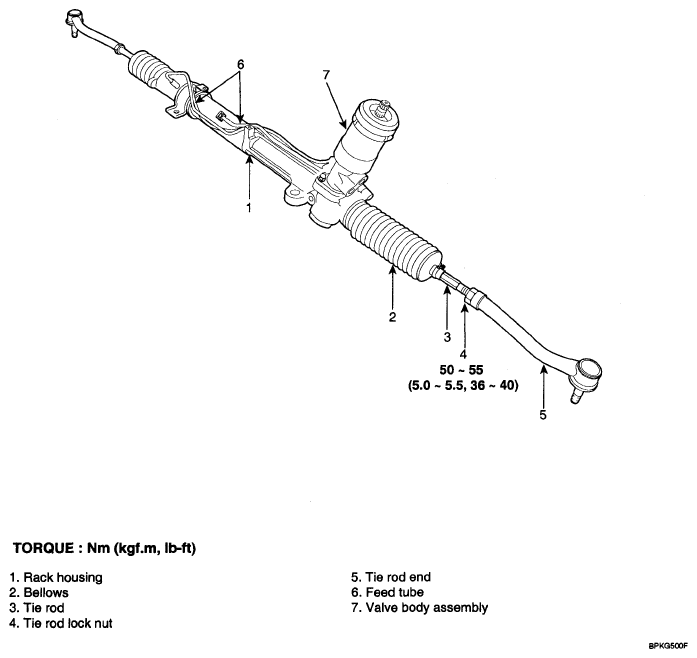

Fig 1: Mechanical Power Steering System Replacement Components With Torque Specifications

G04882646

Courtesy of KIA MOTORS AMERICA, INC.
