2006-2007MY SEDONA (VQ) P0110/P0128/P0300 Powertrain Control Module Reprogram (ENG035)

Publication date: 2007-11-01
Reference number: ENG035

2006-2007MY SEDONA (VQ) P0110/P0128/P0300 POWERTRAIN CONTROL MODULE REPROGRAM

2006-2007MY SEDONA (VQ) P0110/P0128/P0300 POWERTRAIN CONTROL MODULE REPROGRAM

TECHNICAL SERVICE BULLETIN

Reference Number(s): ENGINE 035, Date of Issue:  November 01, 2007
KIA: Sedona (VQ)
GROUP: Engine

Service Information

This service bulletin provides information related to a Powertrain Control Module (PCM) upgrade for some 2006-2007MY Sedona (VQ) models.

Some 2006 and 2007MY Sedona (VQ) models may exhibit Malfunction Indicator Lamp (MIL) illumination with the following Diagnostic Trouble Codes (DTCs) stored in the Powertrain Control Module (PCM):

NOTE: When retrieved from control units (not yet reprogrammed) in vehicles covered by this TSB, the DTCs listed above are most likely the result of incorrect ECM logic interpretations ("false codes") and typically no actual misfire causing conditions or circuit/component faults exist.

To correct these DTC occurrences, the PCM should be reprogrammed using the GDS download as described in this bulletin.

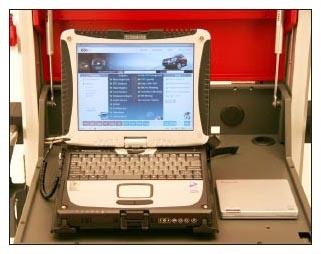

Fig 1: Identifying Global Diagnostic System
G05608381Courtesy of KIA MOTORS AMERICA, INC.
NOTE: Global Diagnostic System (GDS) users should access the "Notice" function from the GDS Main Screen for instructions regarding PCM upgrade events.
NOTE:
  • A fully charged battery is necessary before PCM upgrade can take place. DO NOT connect a battery charger to the vehicle during PCM upgrade. Make sure the blower motor is 'OFF' during PCM upgrade.
  • All PCM upgrades must be done with the ignition key in the 'ON' position.
  • Be careful not to disconnect any cables connected to the vehicle or GDS during the PCM upgrade procedure.
  • DO NOT start the engine during PCM upgrade.
  • DO NOT turn the ignition key 'OFF' or interrupt the power supply during PCM upgrade.
  • When the PCM upgrade is completed, turn the ignition key 'OFF' and wait 20 seconds before starting the engine.
  • ONLY use approved PCM upgrade software designated for the correct model, year and engine size. Failure to do so may create other driveability issues due to the use of the incorrect PCM calibration.
ROM ID INFORMATION TABLE

MODEL YEAR IMMOBILIZER PCM P/N ROM ID
CURRENT NEW
2006 Y 39110 3C410 VQ5N38*M2AS5D1BA
VQ5N38*M2AS5E1BB
VQ5N38*M2AS5E2AA
VQ5N38*M2AS5E3AA
VQ5N38*M2AS671CB		 VQ5N38*M2AS671DB
N 39110 3C460 VQ5N38*S2AS5D1BA
VQ5N38*S2AS5E1BB
VQ5N38*S2AS5E2AA
VQ5N38*S2AS5E3AA
VQ5N38*S2AS671CB		 VQ5N38*S2AS671DB
2007 Y 39110 3C415 VQ6N38*M2AS653DB
VQ6N38*M2AS660AB
VQ6N38*M2AS671BA
VQ6N38*M2AS671DA
VQ6N38*M2AS671EA		 VQ6N38*M2AS671FA
N 39110 3C465 VQ6N38*S2AS653DB
VQ6N38*S2AS660AB
VQ6N38*S2AS671BA
VQ6N38*S2AS671DA
VQ6N38*S2AS671EA		 VQ6N38*S2AS671FA

Service Procedure

  1. Connect the power supply cable to the GDS tool.
    NOTE: If attempting to perform the PCM upgrade with the power supply cable disconnected from the GDS tool, be sure to check that the GDS tool is fully charged before PCM upgrade. If the GDS tool is not fully charged, failure to perform the PCM upgrade may occur. Therefore, it is strongly recommended that the power supply connector be connected to the GDS tool.
  2. Connect the USB cable between the Vehicle Communications Interface (VCI) and the GDS tool.
    NOTE: When performing the PCM upgrade using the GDS tool, wireless communication between the VCI and GDS tool is not available. Therefore, be sure to connect the USB cable between the VCI and the GDS tool.
  3. Connect the Main 16-pin DLC cable (GHDM - 241000) to the VCI.
  4. Connect the Main 16-pin DLC cable (GHDM - 241000) to the OBD-II connector, located under the driver's side of the instrument panel.

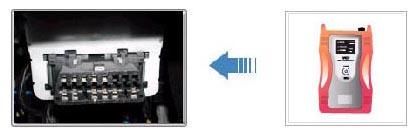

    Fig 2: View Of OBD-II Connector
    G05608382Courtesy of KIA MOTORS AMERICA, INC.
  5. With the ignition key ON, turn ON the VCI and GDS tool. Access the GDS tools vehicle identification number (VIN) screen and configure the vehicle using the VIN AUTO DETECT Function.
  6. Once back at the GDS Main Screen, select PCM upgrade from the bottom right-hand corner. Next select Auto Mode  , Engine.
  7. Perform the PCM upgrade in accordance with normal GDS tool PCM upgrade procedures.
    NOTE: * Do NOT attempt to perform a Manual Mode PCM upgrade unless Auto Mode fails. Always follow the instructions given on the GDS tool in either Auto or Manual mode. See table for Manual Mode passwords.
    * MANUAL MODE PCM UPGRADE PASSWORDS

    MENU PASSWORD
    VQ 3.8 +IMMO 39110 3C410 3410
    VQ 3.8 -IMMO 39110 3C460 3460
    VQ 3.8 +IMMO 39110 3C415 3415
    04. VQ 3.8 -IMMO 39110 3C465 3465
    * Do NOT perform Manual Mode PCM upgrade unless Auto Mode fails.
  8. When the GDS tool reports that the PCM upgrade has been successfully completed, click OK, turn OFF the ignition key, and wait at least 20 seconds before attempting to start the engine.
  9. Check for Diagnostic Trouble Codes using the GDS and erase any DTCs stored in the Engine and Transaxle control modules.
  10. Confirm proper shift points of A/T units after reprogramming to reduce customer complaints of excessive shift shock and improper shift points.

AFFECTED PRODUCTION RANGE

2006 and 2007MY Sedona (VQ) vehicles

WARRANTY CLAIM INFORMATION

WARRANTY CLAIM INFORMATION

Claim Type Causal P/N Qty. N Code C Code Repair Description Labor Op Code Time Related Parts Qty.
W 39110 3C410 (2006MY, W/Immobilizer)
39110 3C460 (2006MY, W/O Immobilizer)
39110 3C415 (2007MY, W/Immobilizer)
39110 3C465 (2007MY, W/O Immobilizer)		 0 N69 C40 PCM Upgrade 39110F34 0.5 NA 0
N69: Warning Light On C40: Improper adjustment
