Component Inspection

Check resistance of ECTS

IG "OFF" and disconnect ECTS connector.

Measure resistance between terminal 1 and 3 of ECTS connector. (Component Side)

SPECIFICATION :

RESISTANCE SPECIFICATION

Temp. (°C/°F)	Resistance (kΩ)	Temp. (°C/°F)	Resistance (kΩ)
-40(-40)	48.14	40(104)	1.15
-20(-4)	14.13 ~ 16.83	60(140)	0.59
0(32)	5.79	80(176)	0.32
20(68)	2.31 ~ 2.59

Fig 1: Measuring Resistance Between Terminal 1 And 3 Of ECTS Connector

G04883407

Courtesy of KIA MOTORS AMERICA, INC.

Is the measured resistance within specification?
YES
- Go to 2 "Check PCM" procedure.
NO
- Substitute with a known - good ECTS and check for proper operation. If the problem is corrected, replace ECTS and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

Check PCM
1. IG "OFF" and connect scantool.
2. Connect probe to terminal 3 of ECTS harness connector.
3. IG "ON" & ENG "OFF" and simulation Function on scantool.
4. Simulate voltage at terminal 3 of ECTS harness connector.

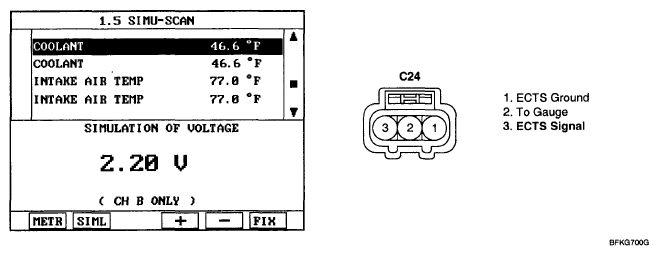

  Fig 2: Scantool Display - Simu Scan Function
  Courtesy of KIA MOTORS AMERICA, INC.
5. Does the signal value of ECT sensor change according to simulation voltage?
  YES
  - Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Substitute with a known - good PCM and check for proper operation. If the problem is corrected, replace PCM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NOTE: There is a memory reset function on scantool that can erase optional parts automatically detected and memorized by PCM. After testing PCM on the vehicle, use this function to reuse the PCM on the others
