Monitor SCANTOOL Data

  1. IG "OFF" & connect scantool.
  2. ENG "ON" and warm -up the engine to normal operating temperature.
  3. Monitor "Monitor "ECTS" status on the service data." item on the service data.

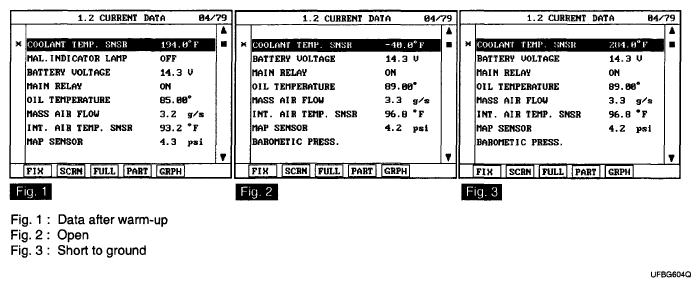

    Fig 1: Scantool Display - Current Data
    G04883336Courtesy of KIA MOTORS AMERICA, INC.
  4. Is the "ECTS" data displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor' sand/or PCM' s connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, ending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure

    NO
