IMS Power Seat Control: Replacement

  1. Remove the negative (-) battery terminal.
  2. Remove the front door trim panel in the car. (Refer to FRONT DOOR )
  3. Remove the switch (A) mounting screws (3 EA) after disconnecting the 16pin switch connector.

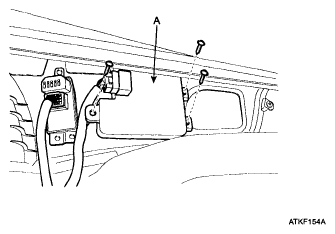

    Fig 1: Identifying IMS Control Switch
    G04884891Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the connector from the front door trim panel.
  5. Installation is the reverse of removal.
